How do I configure my B-box 3 in bridge mode

With this manual, you will be able to put your B-box 3 in bridge mode. It will force the device to only act as a modem, letting you configure PPP connection on your own device connected behind.

Enable bridge mode

  1. Open your web browser (Internet Explorer, Firefox,…) and go to the web interface of your B-box 3. By default, it should be reachable on http://192.168.1.1. Identify yourself on the modem with the user password (it’s printed on a label on the rear of the modem).

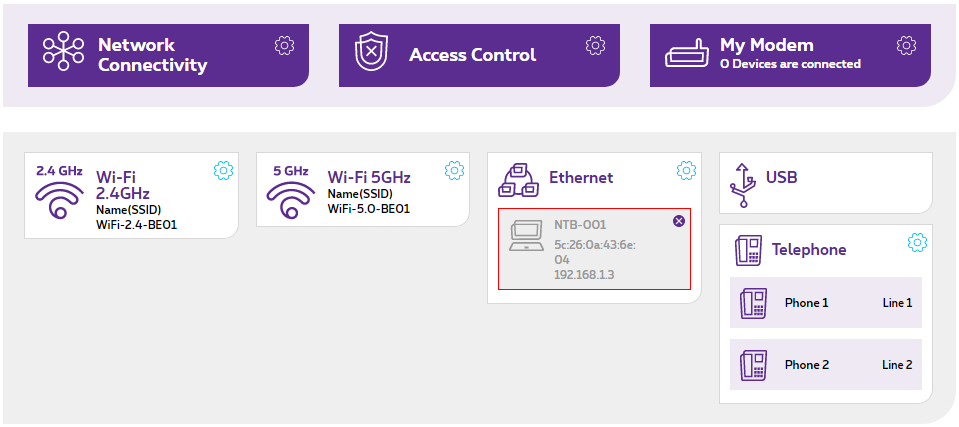

  2. In the main menu, click Network Connectivity:
    How do I configure my B-box 3 in bridge mode

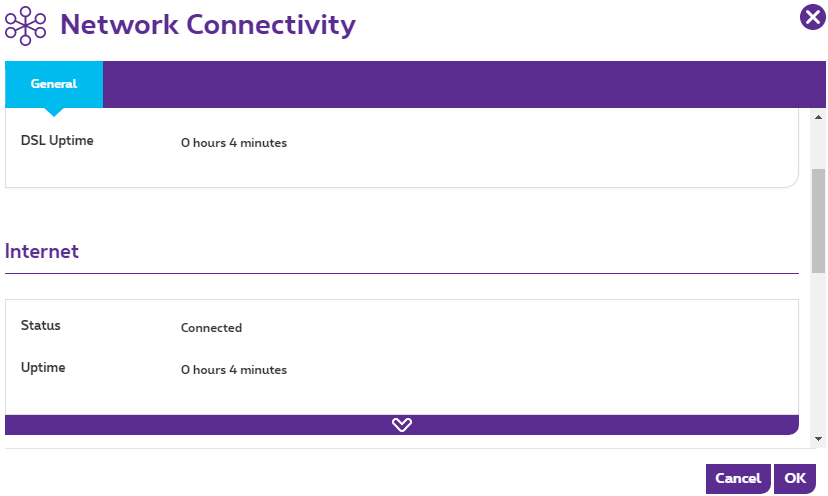

  3. Select Network Connectivity and Click on How do I configure my B-box 3 in bridge mode under the sub menu Internet:
    How do I configure my B-box 3 in bridge mode

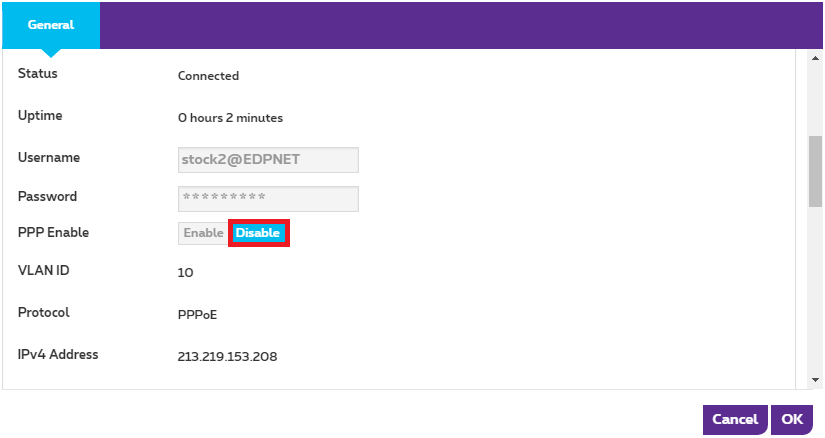

  4. Switch PPP enable slider to Disable and click How do I configure my B-box 3 in bridge mode:
    How do I configure my B-box 3 in bridge mode

Connect your local network

No further configuration of your device is needed. Just connect a network cable from one of LAN ports of your B-box 3 to your internal network. PPP configuration is to be done on the authenticating device.

See also:

How can I install and configure my B-box 3 modem

How do I set up a port forwarding on my B-box 3
