How do I install and configure my FRITZ!Box 7530
|Port for connecting to DSL (ADSL2+/VDSL). This port will not be used if the FRITZ!Box is installed on a fiber connection.
|RJ11 socket for connecting analog telephones, fax machines and answering machines.
|LAN 1 — LAN 4
|4 gigabit Ethernet ports (10/100/1000 Base-T) for connecting computers, network hubs, game consoles and other network devices.
|Socket for connecting the power supply unit.
|Device has electrical power and the DSL line is ready for operation
|Device has electrical power and the connection to DSL is being established or has been interrupted
|Wireless LAN is enabled
|Switching wireless LAN function on or off
|Telephone connection via Internet or land-line network active
|• Registration of a wireless via WPS in progress
• Registration of a DECT device in progress
|WPS aborted: more than two wireless devices are performing WPS at the same time
|• Stick & Surf with FRITZ!WLAN USB stick is concluded
|• Updating FRITZ!OS
• Stick & Surf with FRITZ!WLAN USB stick in progress
• Time budget for online time has been reached
|Lights or flashes red

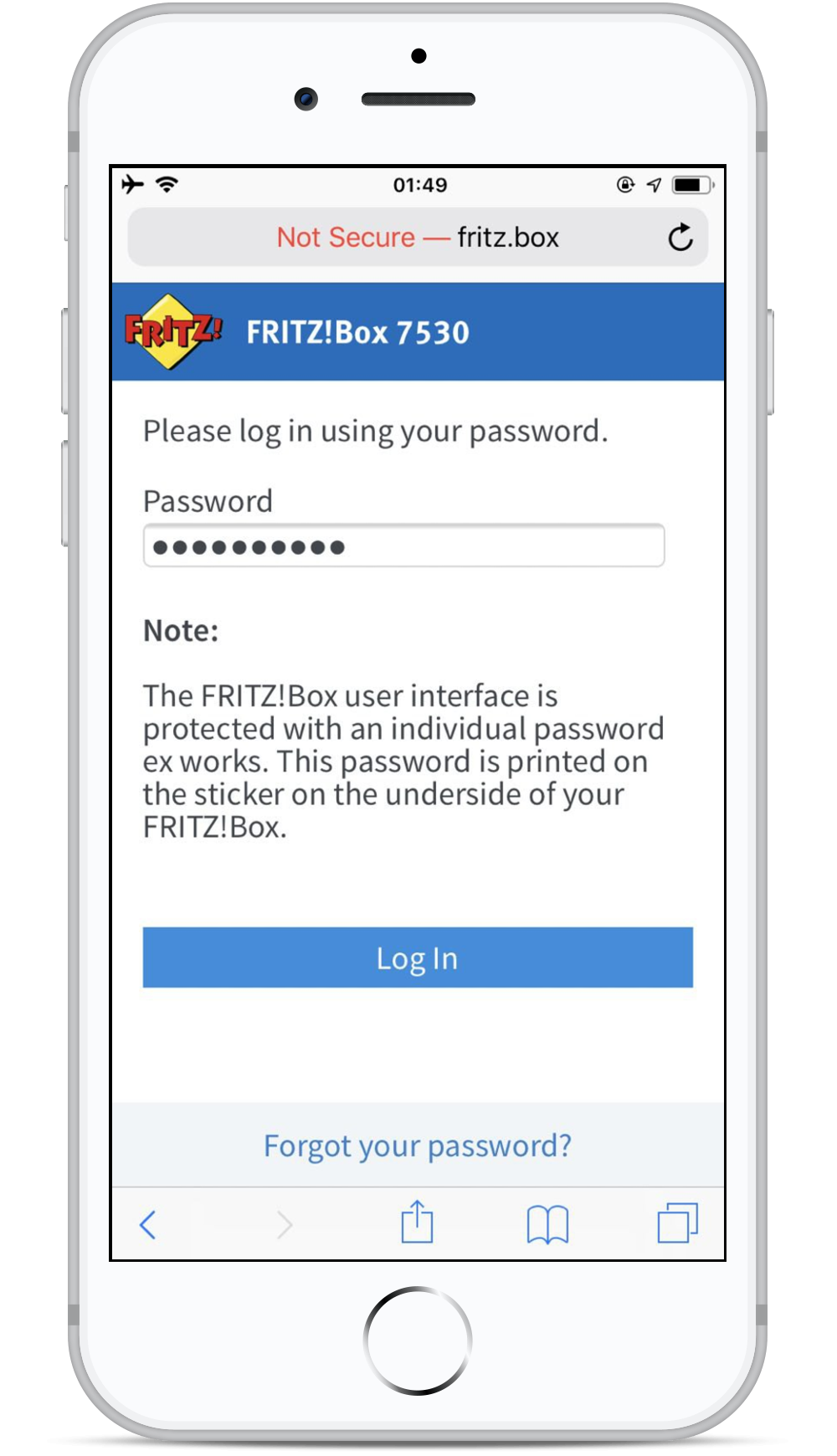

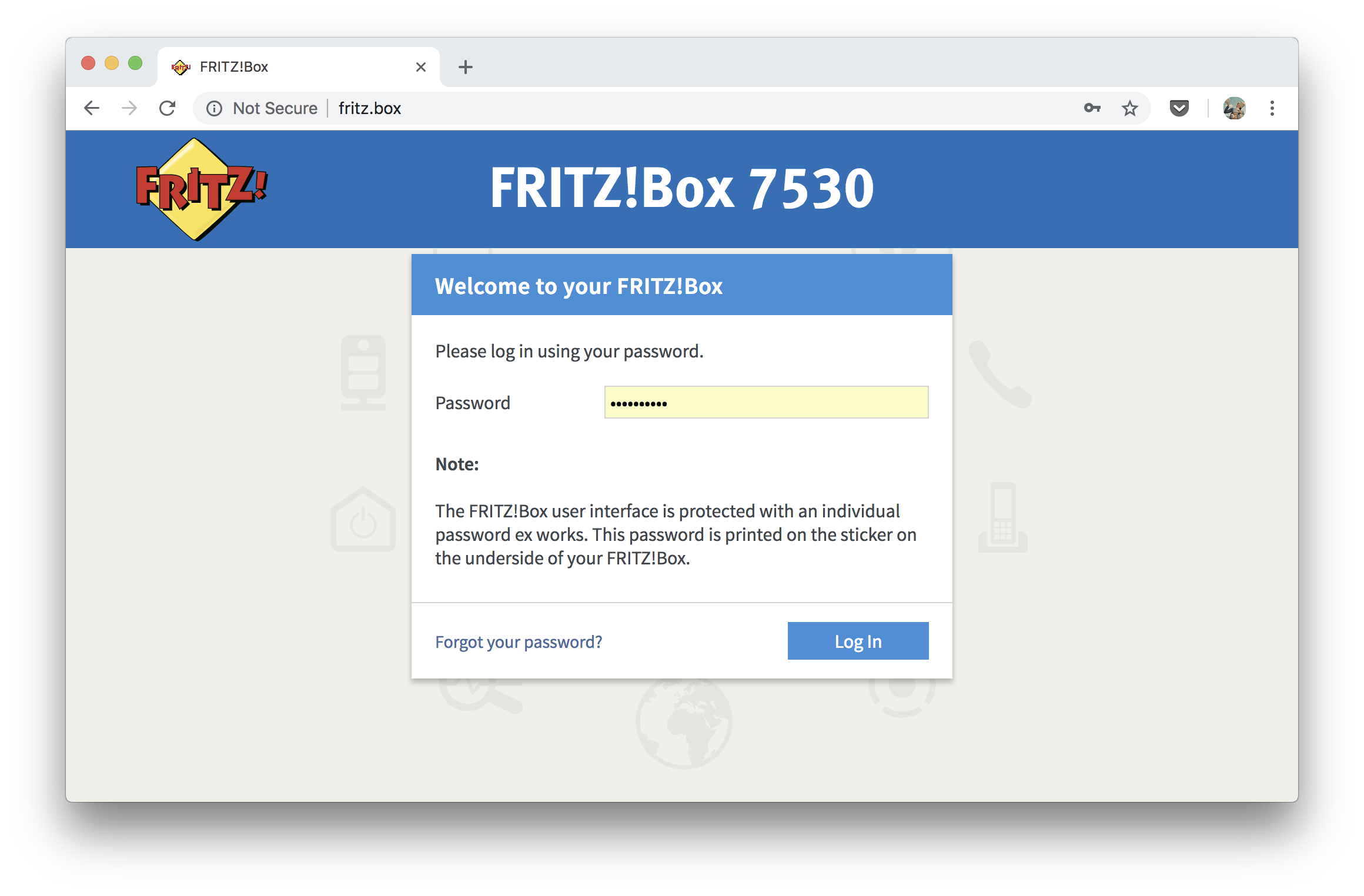

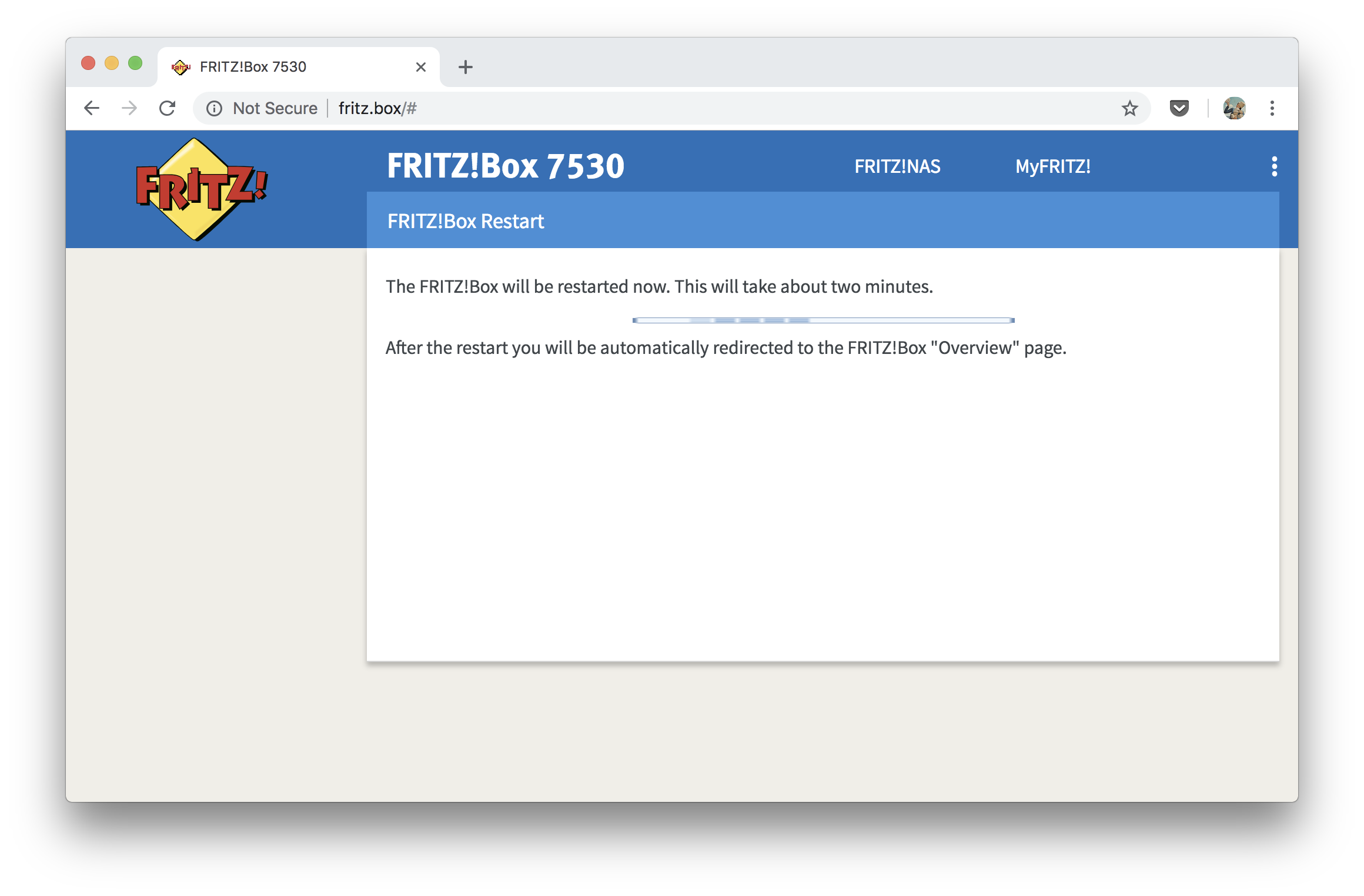

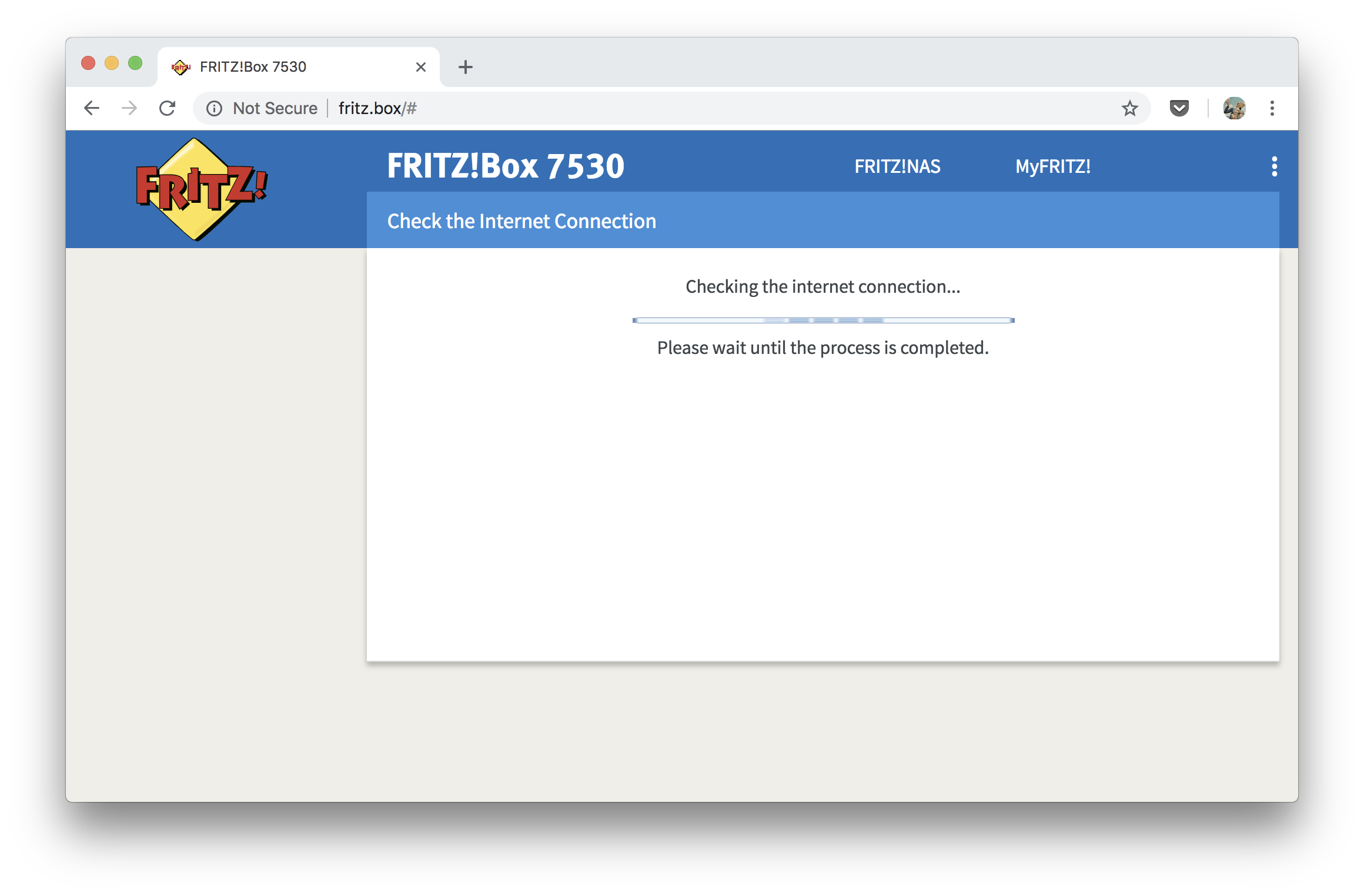

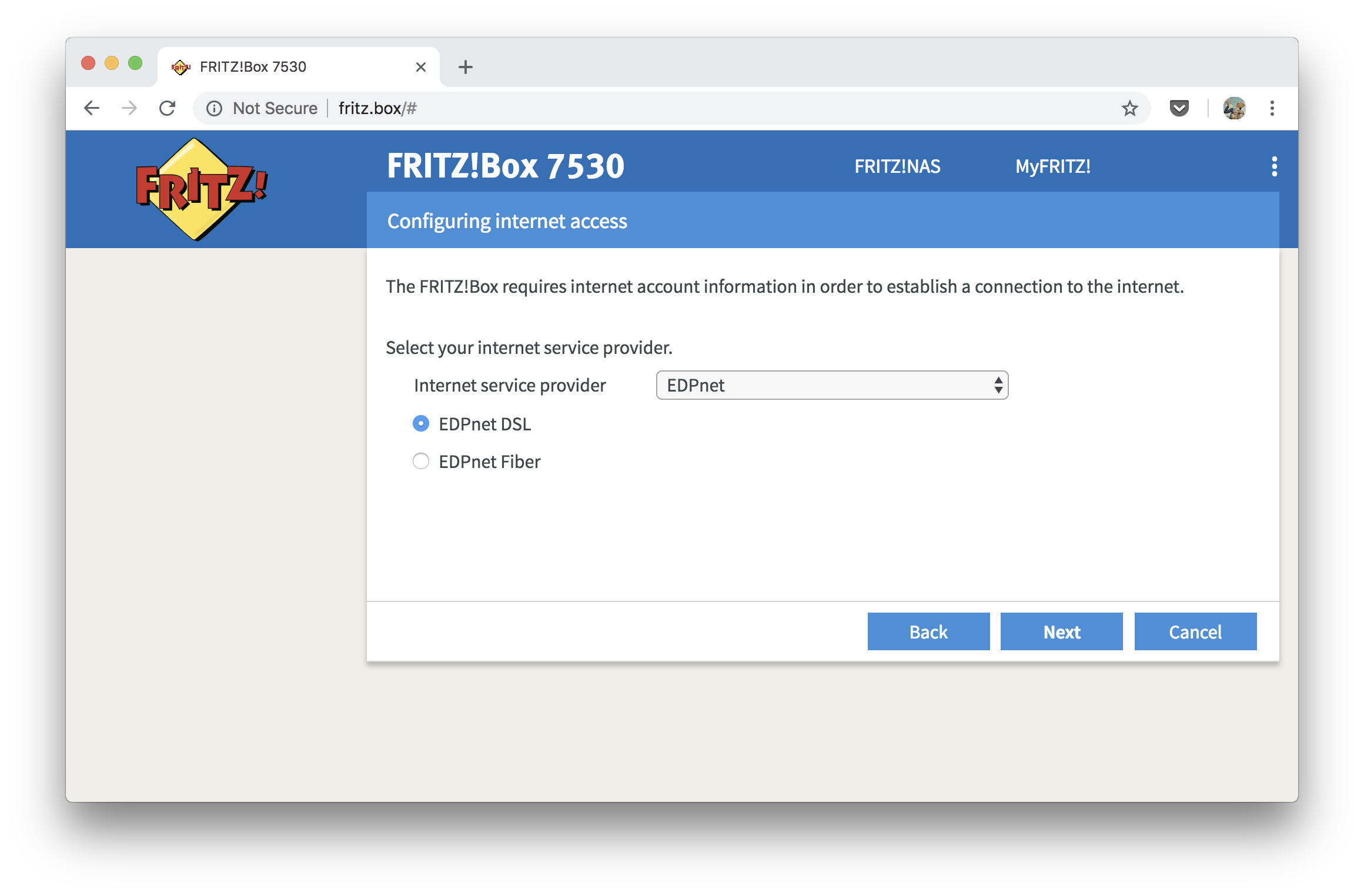

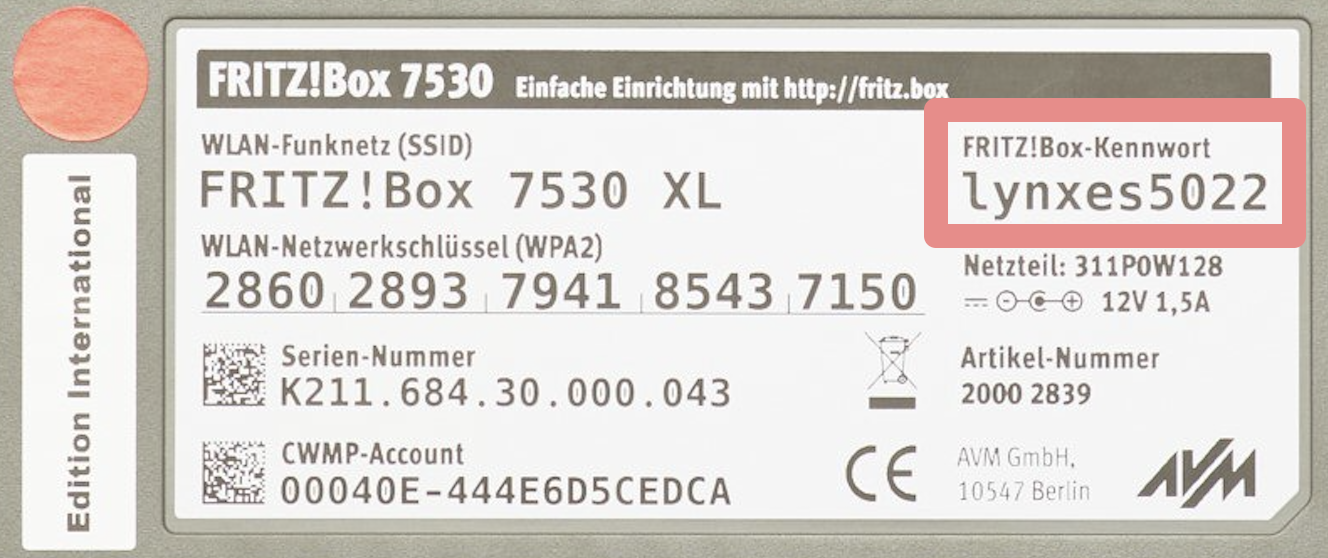

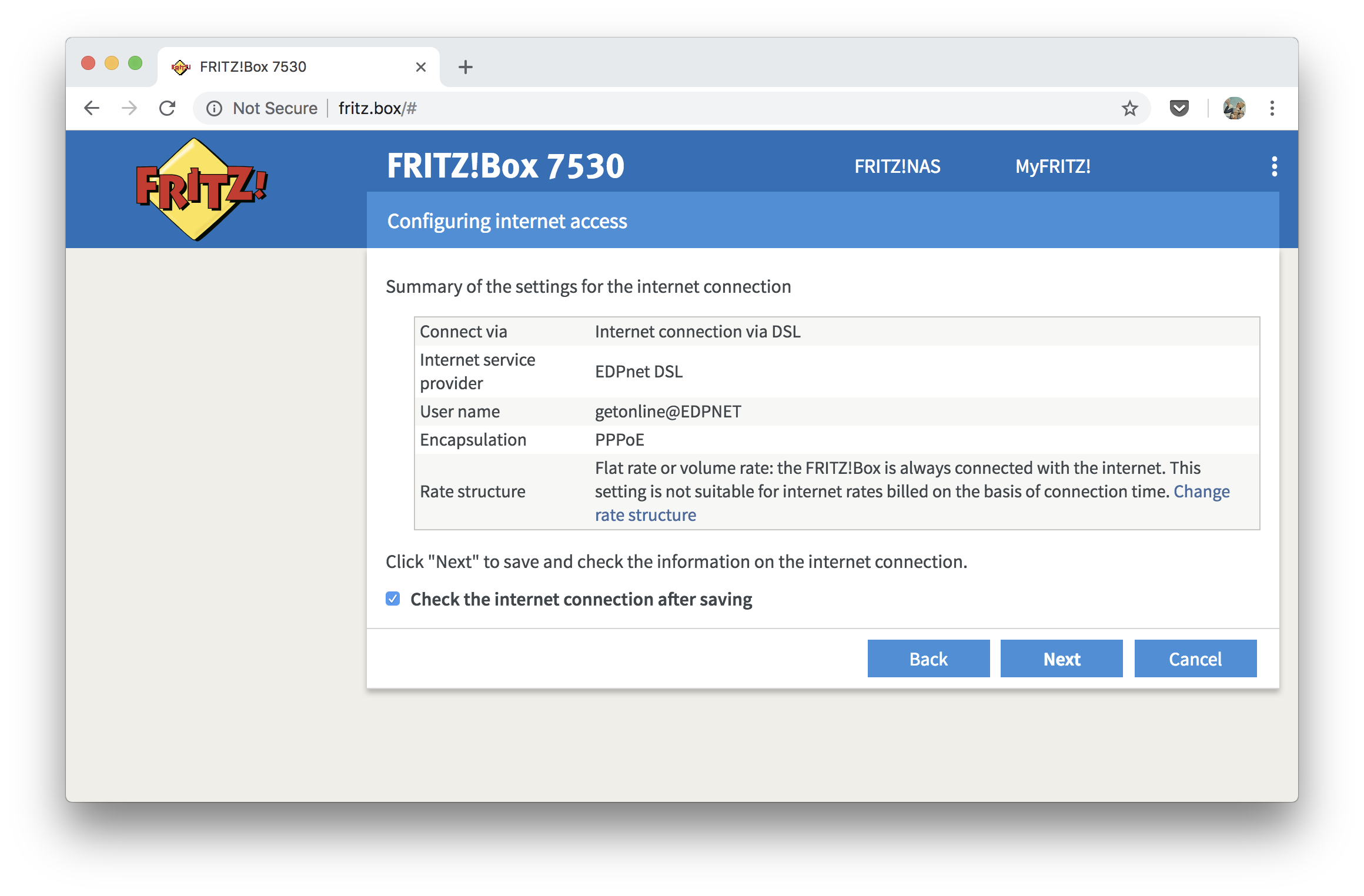

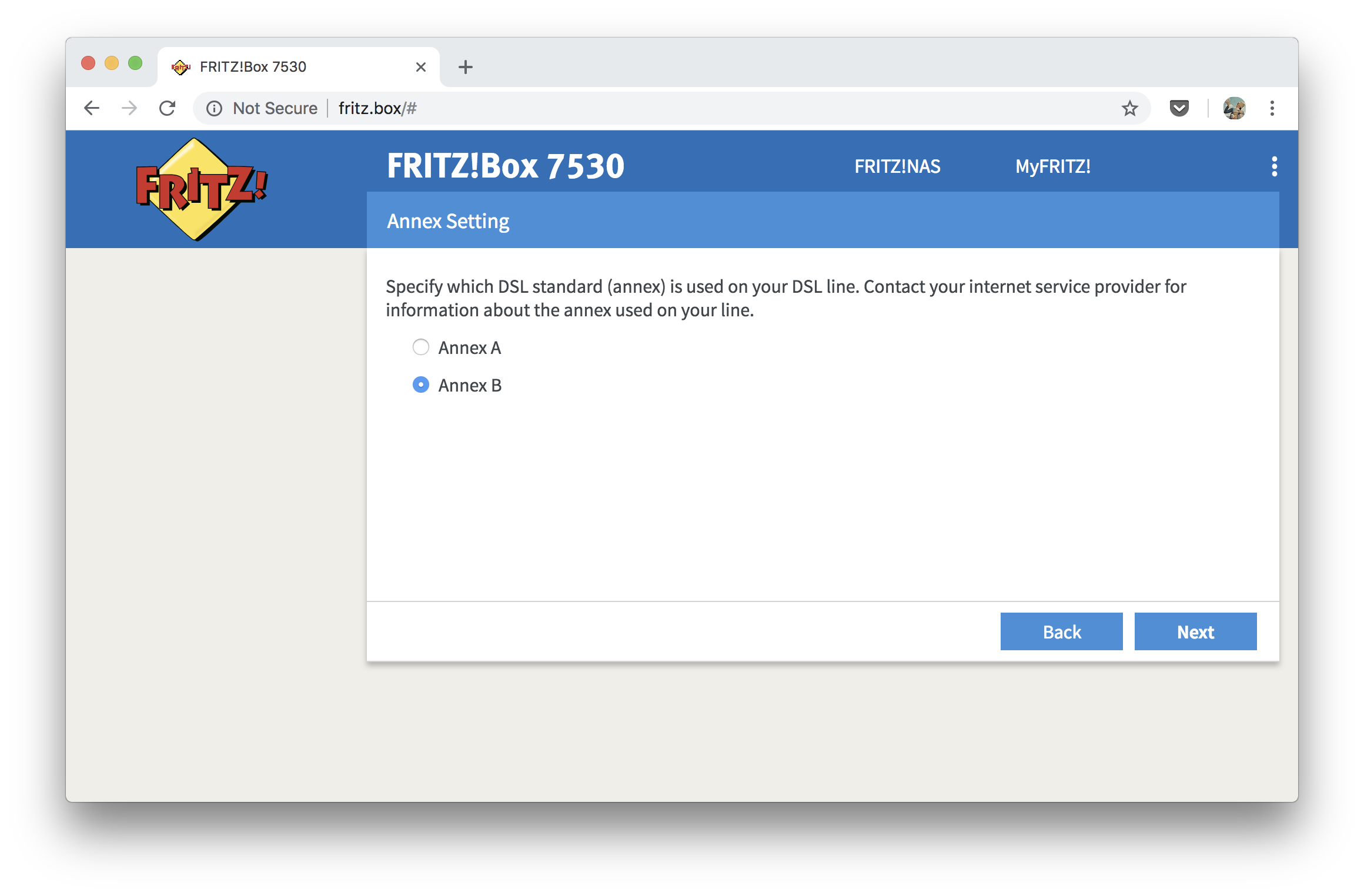

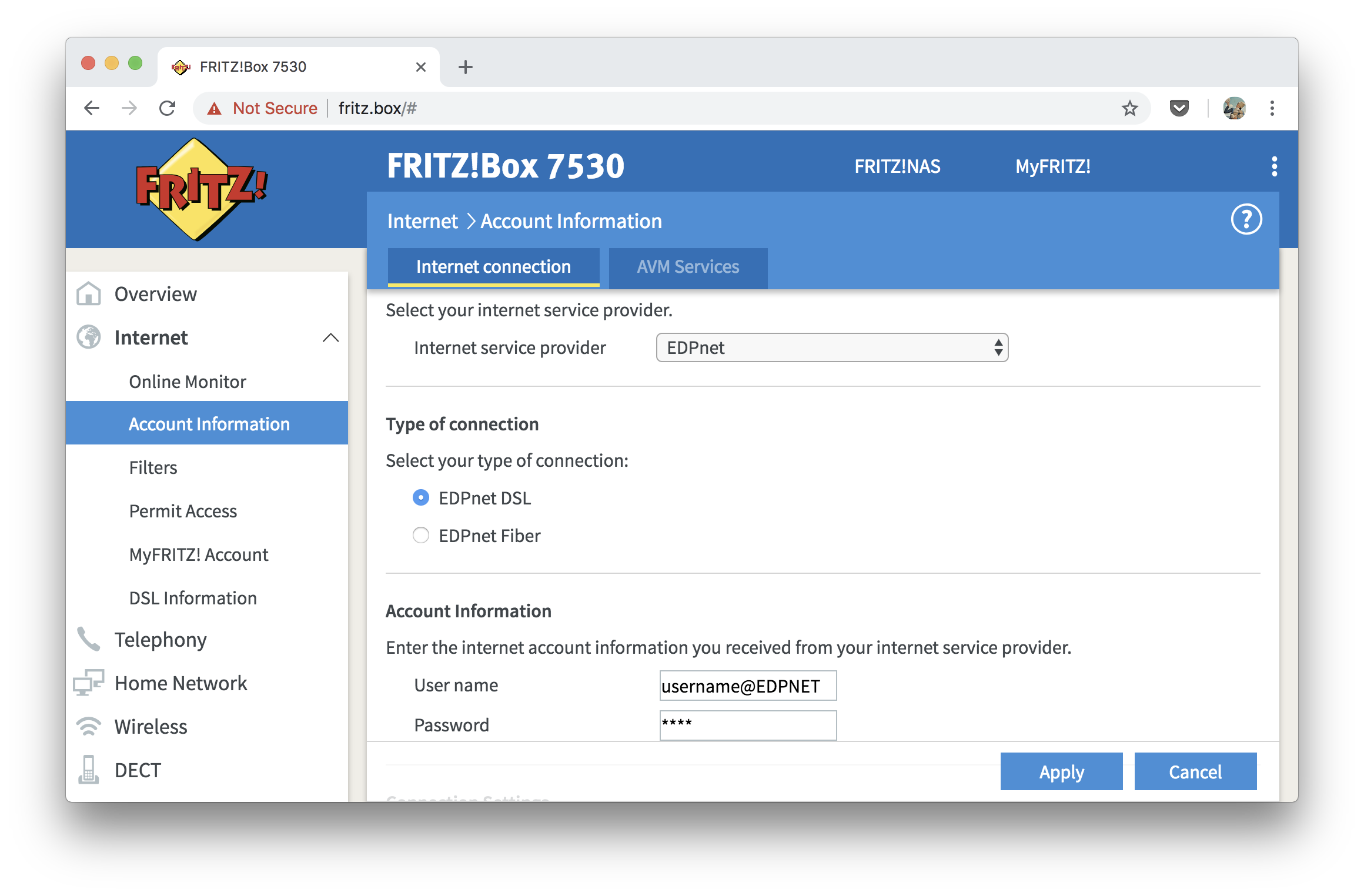

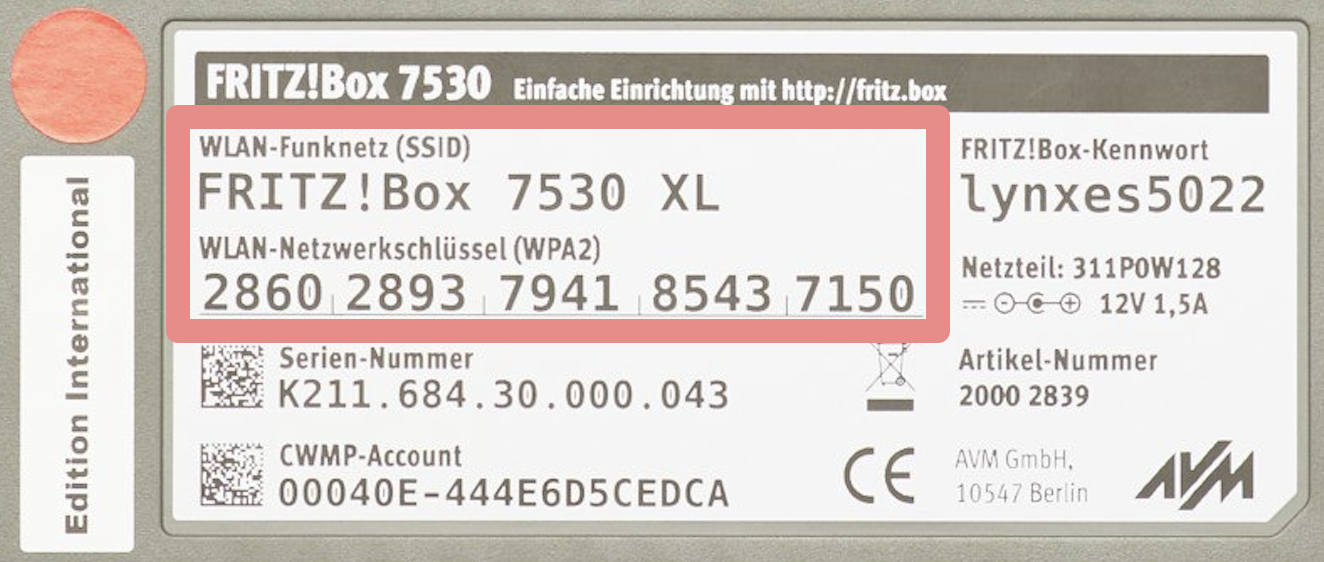

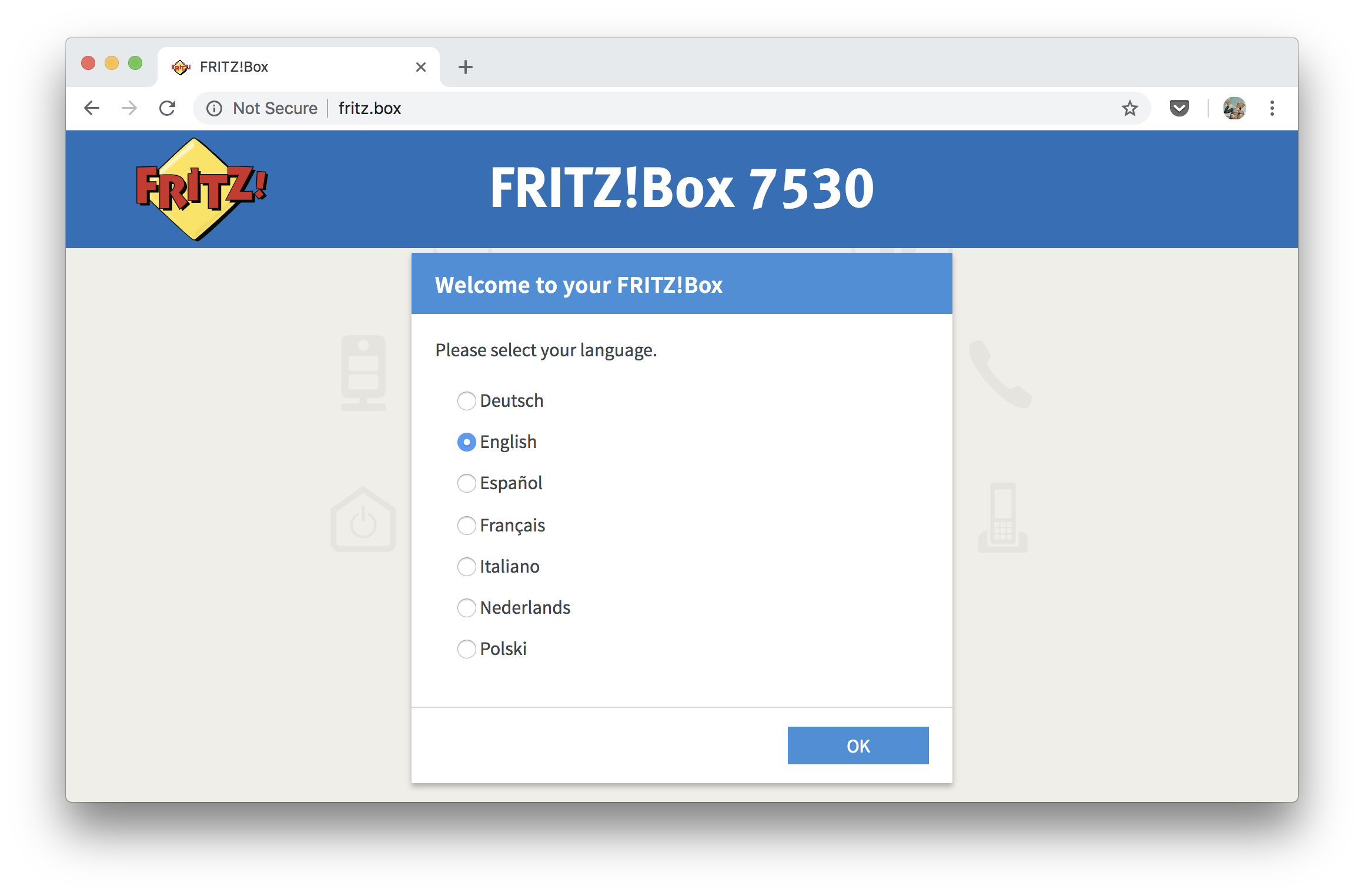

• Open the FRITZ!Box user interface

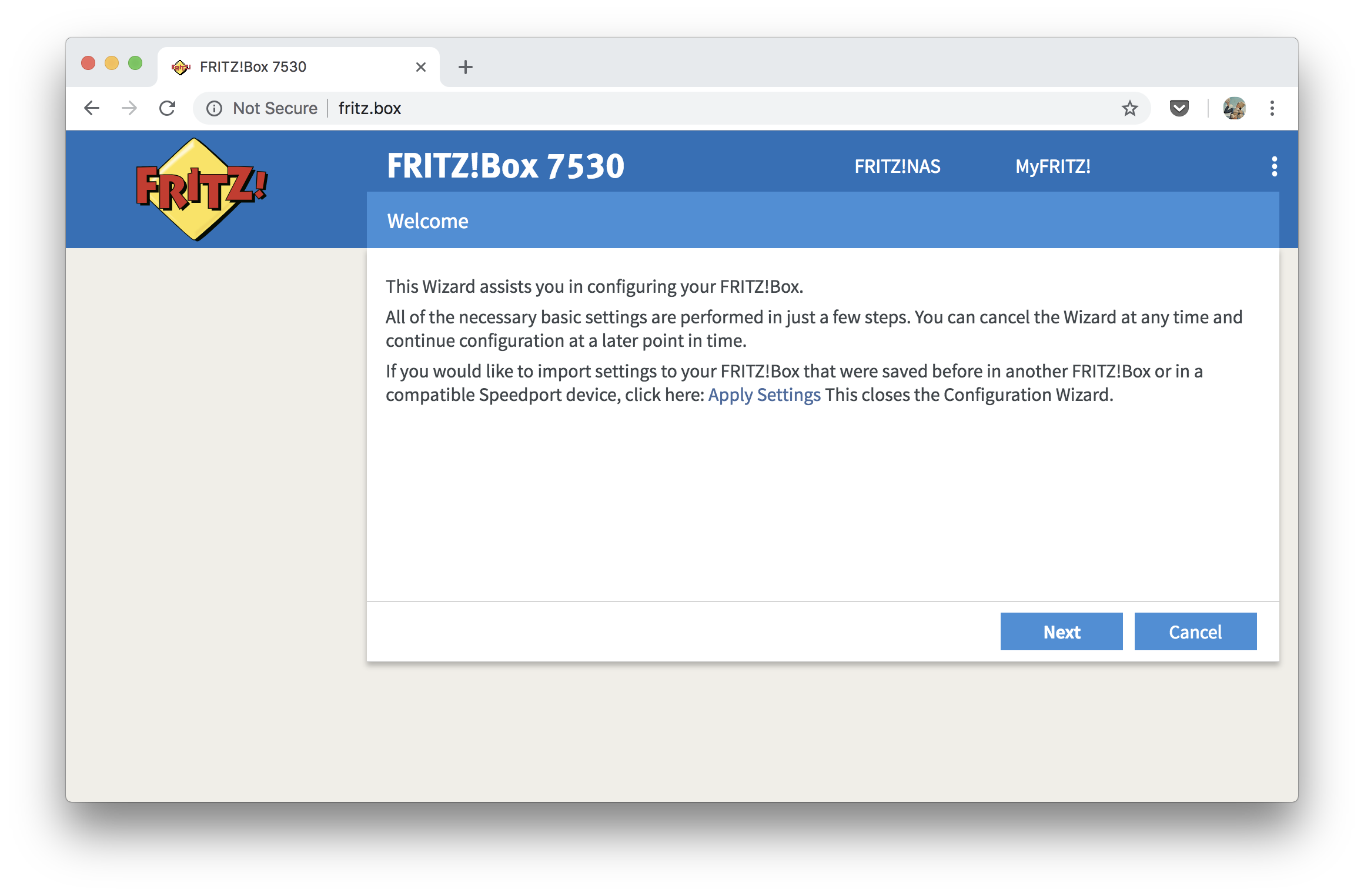

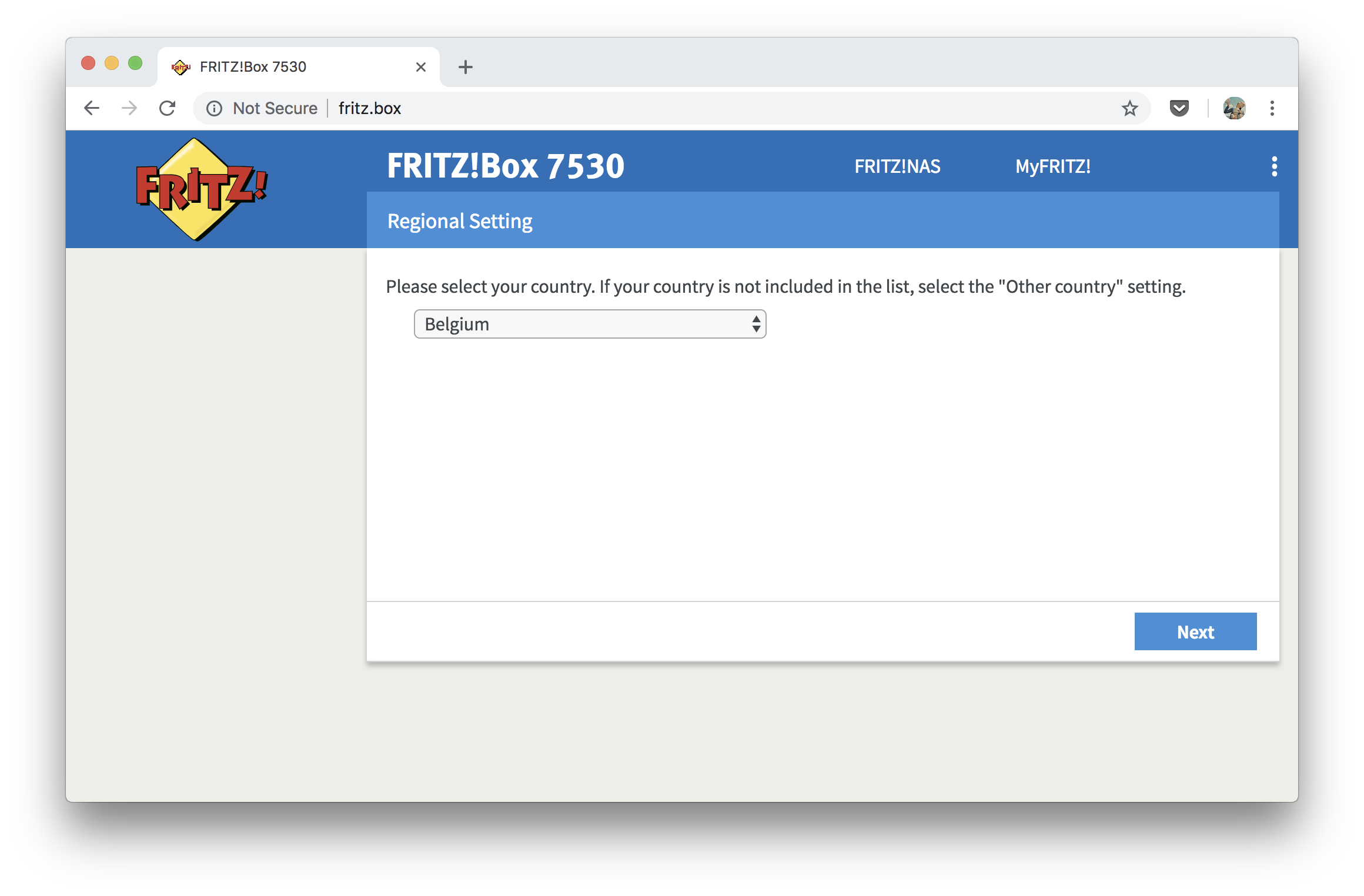

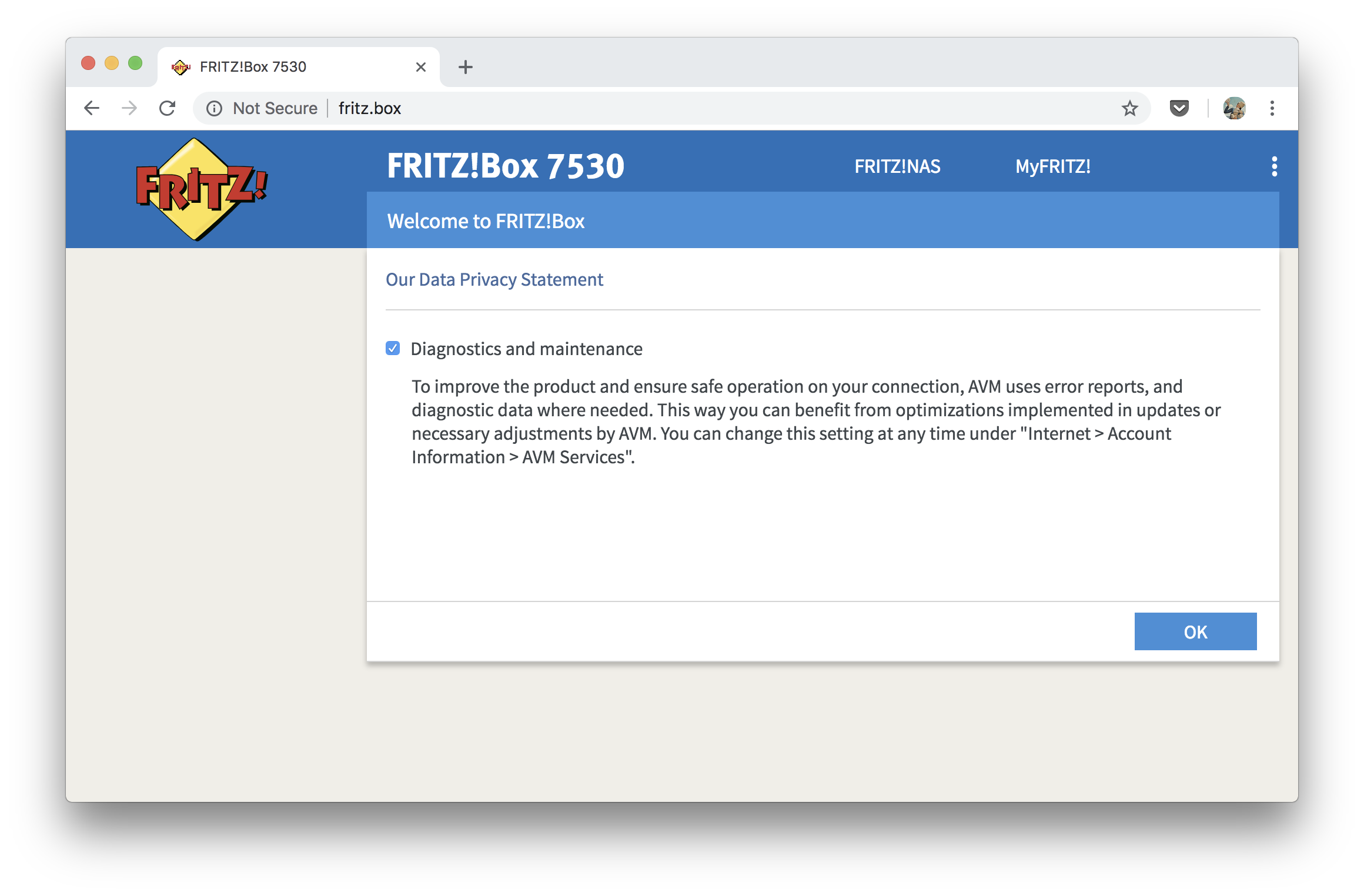

• Follow the instructions on the Overview page in the user interface
→ Connect the power supply unit to the Power socket on your FRITZ!Box
→ Plug the other end into an AC power outlet
→ Insert the grey DSL cable into the DSL port on your FRITZ!Box
→ Insert the free end of the cable into the DSL or Line socket on the splitter or TF2007 phone socket
→ Insert the network cable into the LAN socket of the computer
→ Insert the free end of the cable into one of the LAN sockets on the FRITZ!Box

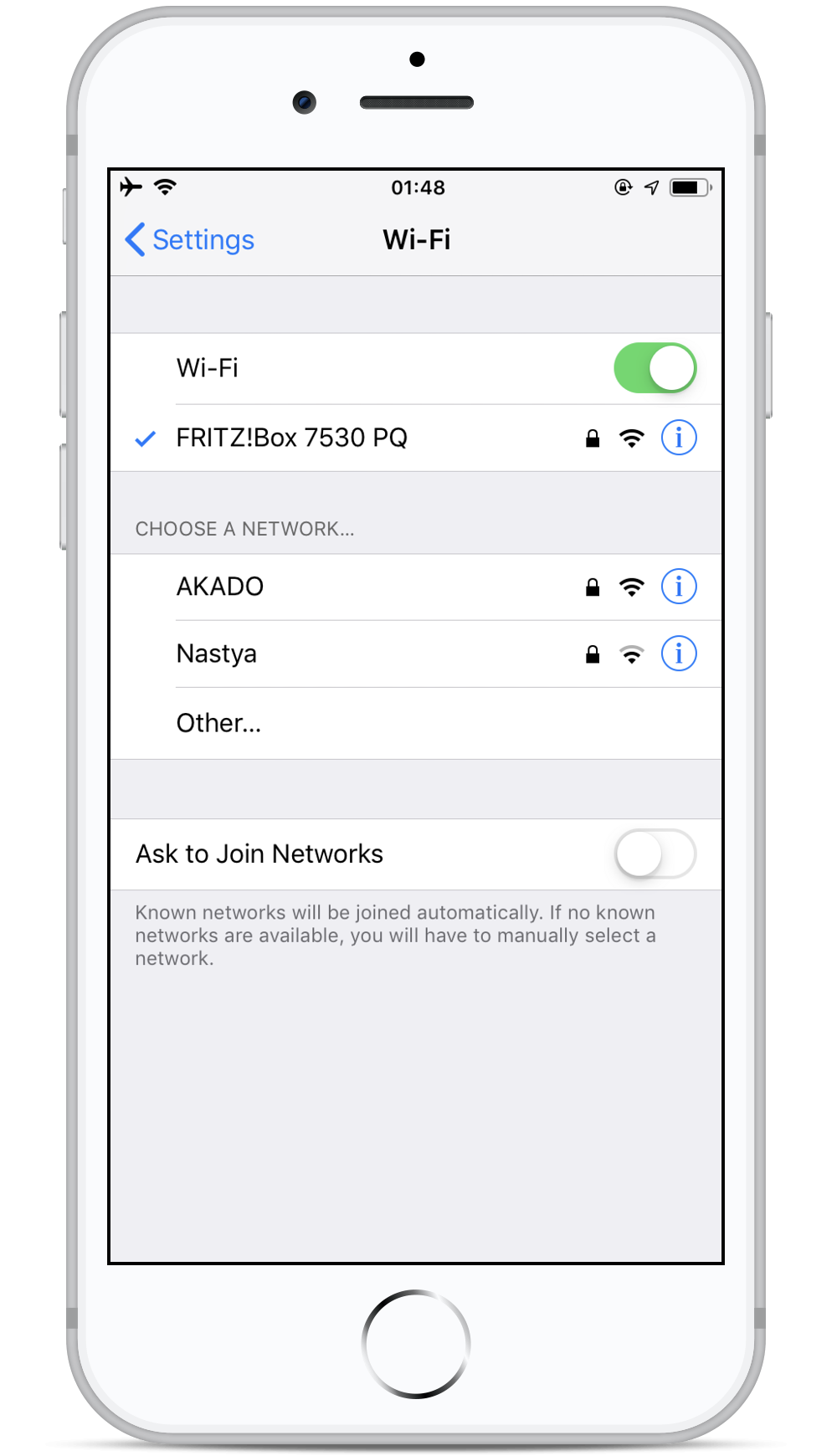

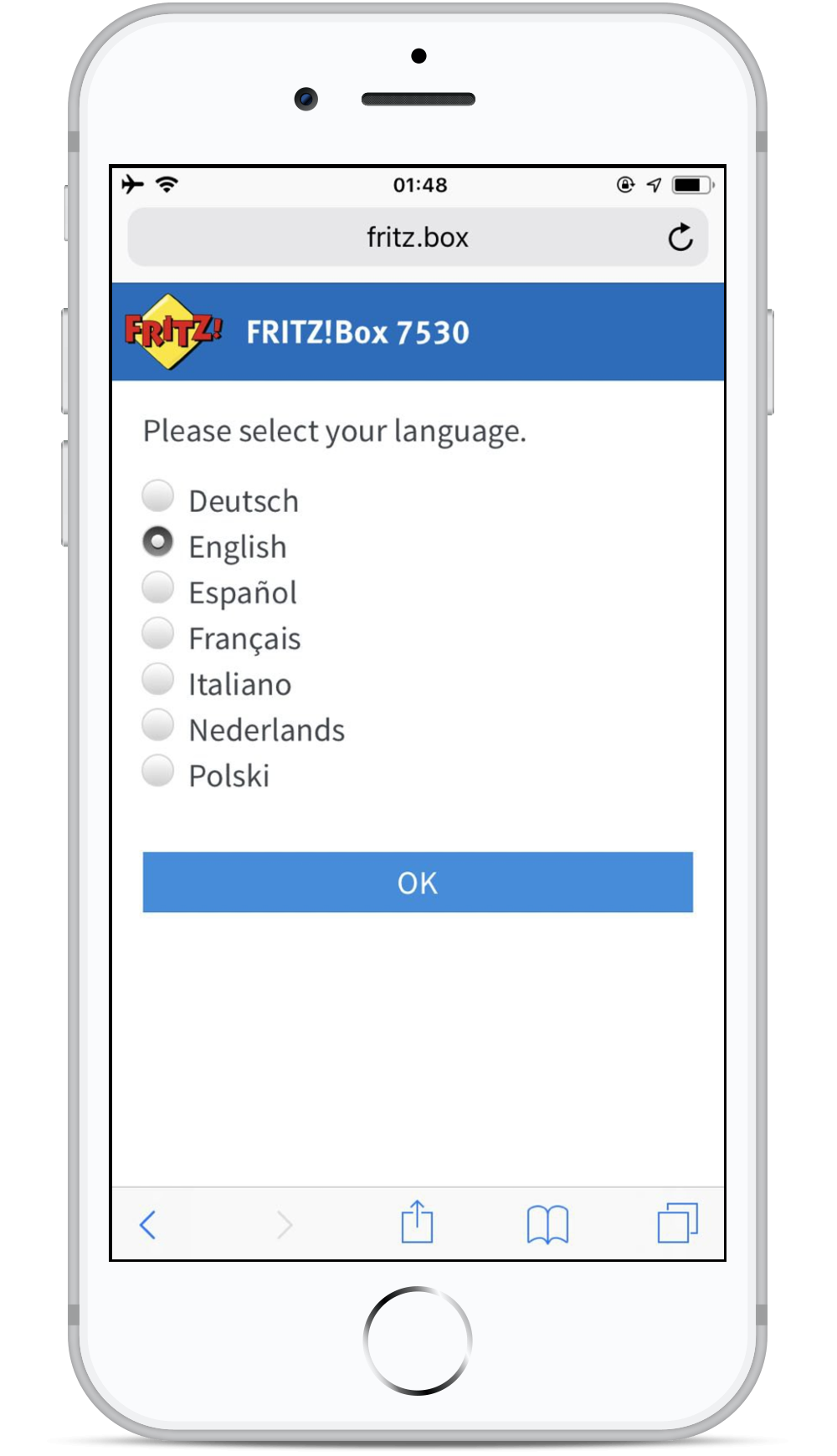

No worries! Configuring your FRITZ!Box is easy—even if you don’t have any laptop or PC. Just use your phone or tablet to access the modem web interface and set up internet connection.
