How do I install and configure my B-box 2 modem

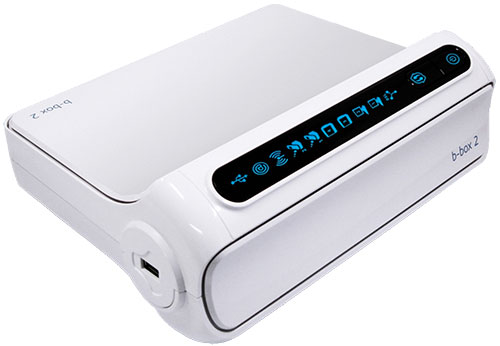

What do I find in my box

How do I install and configure my B-box 2 modem

How do I install and configure my B-box 2 modem

How do I install and configure my B-box 2 modem


How do I install and configure my B-box 2 modem
Power supply Network Cable Telephone cable B-box 2 modem

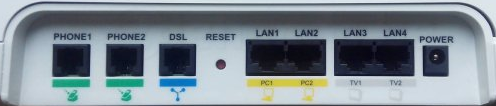

Connect the modem to my computer

  1. Connect the power supply to the modem [POWER]
  2. Connect the telephone cable to the wall socket [DSL]
  3. Connect one side of the network cable to the computer and the other side to the modem [LAN1]

How do I install and configure my B-box 2 modem

Power on the modem

Power on the modem by pushing the Standby How do I install and configure my B-box 2 modem at the frontside. After a selftest (Modem can reboot several times during first use. This process can take several minutes) the modem is ready to configure.

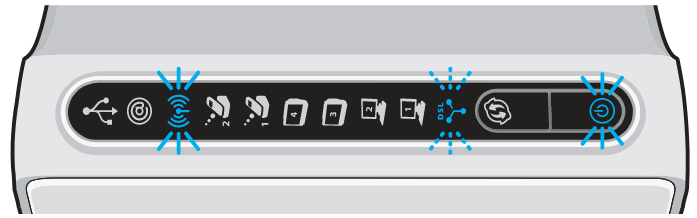

How do I determine the status of my modem?

How do I install and configure my B-box 2 modem

How do I install and configure my B-box 2 modem USB

Always off: USB port of the B-box 2 is deactivated.


How do I install and configure my B-box 2 modem Internet - Blue

On: The modem is connected to the internet.
Flashing: The modem is trying to connect to the internet.
Off: The modem is not connected to the internet.


How do I install and configure my B-box 2 modem Wi-Fi - Blue

On: Wi-Fi is enabled in the modem.
Off: Wi-Fi is disabled.


How do I install and configure my B-box 2 modem Phone 1 and Phone 2 - Blue

On: The VOIP service is configured properly and active on the modem.
Flashing: The VOIP service is being used
Off: The VOIP service is not configured, is configured improperly and/or is not active on the modem.


How do I install and configure my B-box 2 modemTV (LAN ports 3 and 4) - Blue

On: (if the port config is changed so that it functions as regular LAN port) Network device is connected to LAN port and turned on.
Off: (if the port config is changed so that it functions as regular LAN port) No device is connected (or it’s connected and turned off).


How do I install and configure my B-box 2 modemLAN (LAN ports 1 and 2) - Blue

On: Network device is connected to LAN port and turned on.
Off: No device is connected (or it’s connected and turned off).


How do I install and configure my B-box 2 modem DSL - Blue

On: The modem is synchronized.
Flashing: The modem is initializing the DSL line.
Off: The DSL link is down.

Configuring your computer

  1. Click on 'Start' (Windows logo) > 'Control Panel' > 'Network and Internet'.
  2. Go to 'Network and Sharing Center' > 'Change adapter settings'
  3. Doubleclick on Local Area Connection to open the LAN-status window.
  4. Click on the 'Properties' button.
    1. At this point we advise you to check if there is a networkcard mentioned in the non-active textfield 'Connect using'. If not, please contact your network administrator.
  5. Select 'Internetprotocol version 4 (TCP/IPv4)' or v6, if it's active.
    1. If the 'Internetprotocol (TCP/IPv4)' is not visible in the list, please contact your network administrator.
  6. Click on the 'Properties' button. Write down the current settings to reconfigure/restore them again if needed.
  7. Select 'Obtain an IP address automatically'.
  8. Select 'Obtain DNS server address automatically'.
  9. Click 'OK' to exit the window and return to 'Local Area Connection properties'.
  10. Click 'OK' to exit the window and return to 'Network connections'.

How to access my modem

To get on the interface of your modem, launch your web browser and enter "192.168.1.1" as the website address in the address field. By default there is no password needed to access the interface.

If a password is required, use the serial number of your modem. You can find it at the back or the bottom of the device.

How do I install and configure my B-box 2 modem

Modem configuration

Quick start is the first page you see when you access your B-box 2 for the first time.

How do I install and configure my B-box 2 modem

Provided by Internet Service Provider:
Username: Fill in your username for your xDSL connection.
Password: Fill in your password for xDSL connection.
Confirm Password: Retype your password for xDSL connection.

Wireless Network Settings:
Enable Wireless: You can choose to enable or to disable a wireless network.
Attention: by default the wireless is active in the modem!
Enable Broadcast: You can choose to diffuse (Enable) or to hide (Disable) the name of your wireless network.
Wireless ID (SSID): Here you can define the name for your wireless network.

Telephone Settings:
Telephone Service: You can enable or disable the VOIP service.
Important: We advise you to not enable it on this page, but to follow the configuration steps below.

Status

As soon as you save the settings on the page Quick Start, you will be forwarded to the page Status. Next time when you connect to your modem's interface, you will be also forwarded to this page. Here you will find your IP address, data rate, login used, etc...


How do I install and configure my B-box 2 modem

Wireless

How do I install and configure my B-box 2 modem

Via this page, you can decide to enable or to disable wireless on your modem.

SSID: You can change the name of your wireless network.
SSID broadcast: If you wish to keep your WIFI network hidden u can disable this function.
Channel: Here you can change the Channel (frequency).
Security: You can  enable security for your wireless. You can choose between WEP (64 or 128 bits) or WPA security key.

We strongly recommend you to choose at least WPA.

Statistics

This page allows you to check the synchronization of your line, as well as the attenuation and the noise margin (for ADSL or VDSL).

How do I install and configure my B-box 2 modem

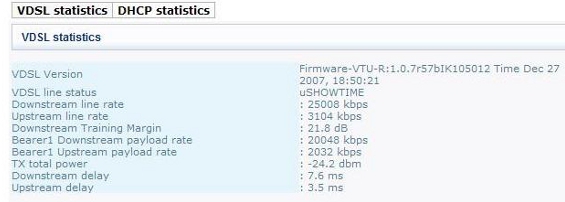

On this page you can see the synchronization values of a VDSL-connection.

How do I install and configure my B-box 2 modem

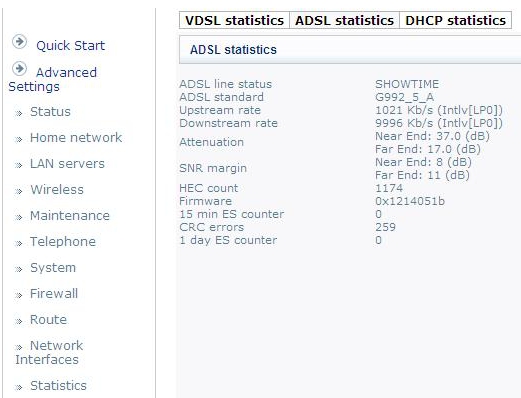

On this page you can see the synchronization values of a ADSL-connection.

Configuring edpnet VOIP telephony

To configure your VOIP account, follow the next steps:

Step 1

How do I install and configure my B-box 2 modem

Click on Telephone in Advanced Settings. There you will find the following data:

At the top, followings menus: General - Line 0 - Line 1 - Line 2 - SIP call History.​
General: this page allows you to configure your SIP account. You can configure only one SIP account.
Line 0 - Line 1 - Line 2: You can fill in here the information provided by your SIP provider (telephone number, username, password). You will find more settings in Step 5.
SIP call History: Here you can see statistics of incoming/outgoing calls from your SIP account.

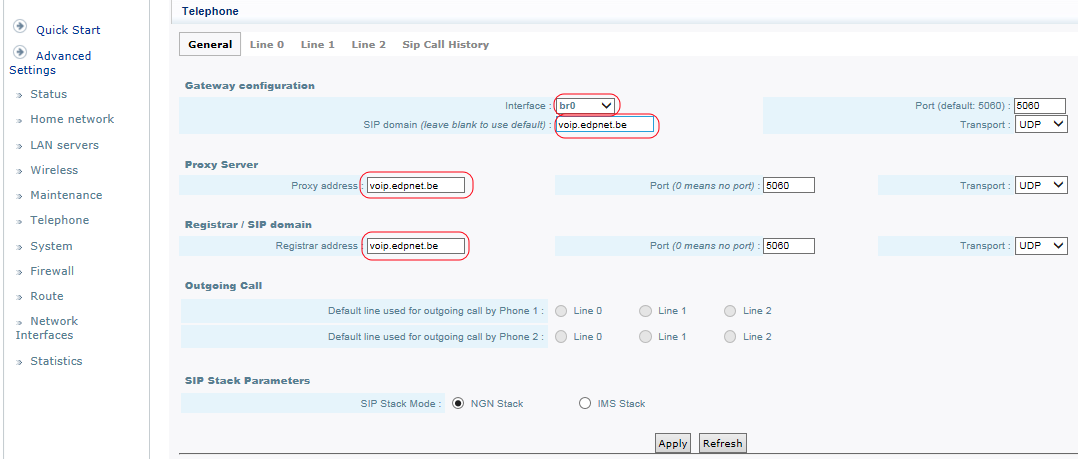

On the page General you can specify the name of SIP server or its IP address. You can also change a port, if needed. Here you will need to fill in sip.edpnet.be or voip.edpnet.be for SIP domain, Proxy address and Registrar address.

Settings for edpnet Telephony:
Interface: BR0
Protocol: SIP
SIP Local Port: 5060
SIP Server:
Server Address: sip.edpnet.be or voip.edpnet.be
Server Port: 5060
REGISTER Server:
Server Address: sip.edpnet.be or voip.edpnet.be
Server Port: 5060
Outbound Proxy:
Server Address: sip.edpnet.be or voip.edpnet.be
Server Port: 5060

As soon as the data is filled in, click on Apply.

Step 2

How do I install and configure my B-box 2 modem

Line Status: Here you can see the status of your SIP account (Registration Status):
The status can be: Disabled, Registering, Up or Error.

Line Configuration: Here you can configure your telephone number, your username and your password. This data is provided by your SIP provider. With edpnet, phone number and username are usually the same.

Be careful: It is very important to fill in the Telephone number, otherwise the SIP account will not be activated.

Physical Interface Association: Here you can specify which VOIP port should be used for your account. You can choose Phone 1 or Phone 2 only, or enable both

That means if you connect your telephone to the active port at the backside of your modem, you will be able to use it for receiving/making calls, depending on your SIP provider. We advise you to enable both ports.

How do I install and configure my B-box 2 modem

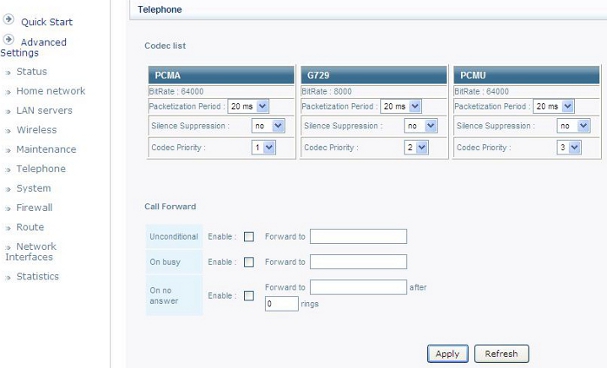

At this part of the screen, you can see different codes supported by your modem (Codec List), and you can decide about their order of priority(Codec priority). You can also configure the call forwarding: to forward all the calls (unconditional), to forward the calls if the line is busy, or to forward the calls if you don't answer.

These options are mandatory and don't have to be adjusted for standard use.
