How do I configure my FRITZ!Box if I only have a phone or a tablet

Configuring your FRITZ!Box is easy—even if you don’t have any laptop or PC. Just use your phone or tablet to access the modem web interface and set up internet connection.




Step 1 — Connecting to the modem

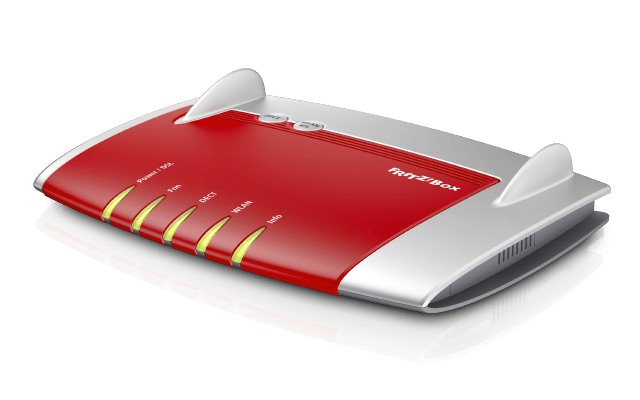

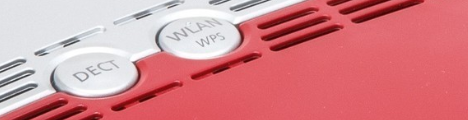

First you need to enable Wi-Fi on your FRITZ!Box. Press the WLAN button and hold it down until the WLAN LED starts flashing:

How do I configure my FRITZ!Box if I only have a phone or a tablet

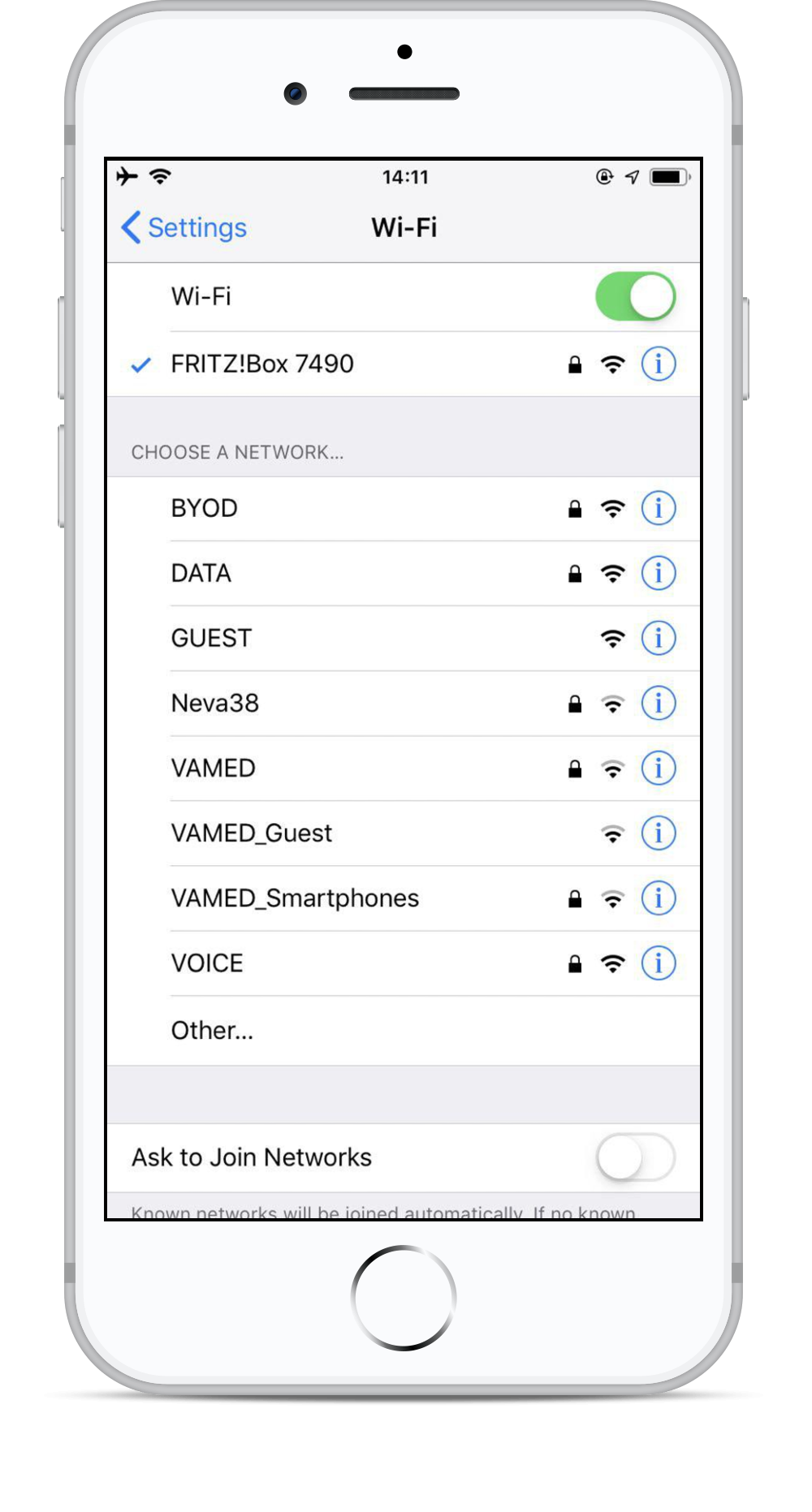

Connect your phone or tablet to the wireless network you just enabled. It’s called FRITZ!Box 7430 or FRITZ!Box 7490.

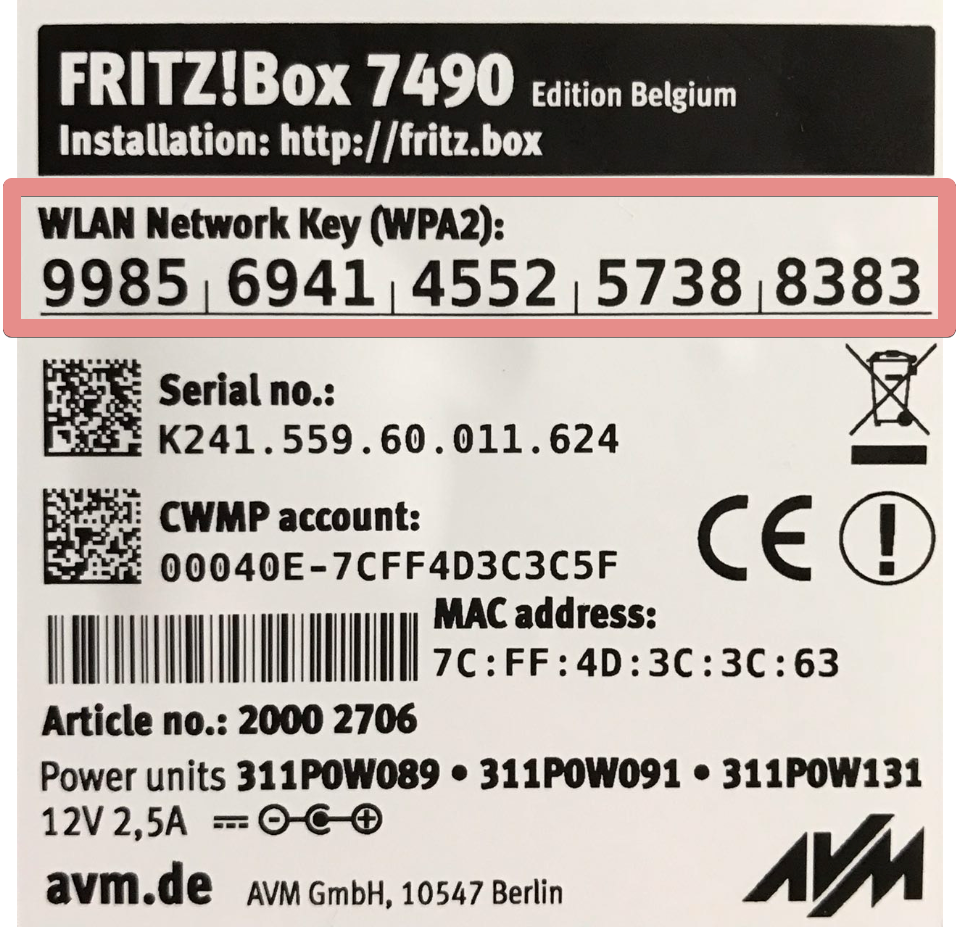

The password by default is printed on a label you may find on the back of the modem:

How do I configure my FRITZ!Box if I only have a phone or a tablet



How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 2 — Opening the web interface



Once you have connected to the modem wireless network, open your web browser (Internet Explorer, Firefox,…) and go to the web interface of your FRITZ!Box. By default, it should be reachable on http://fritz.box or http://192.168.178.1.

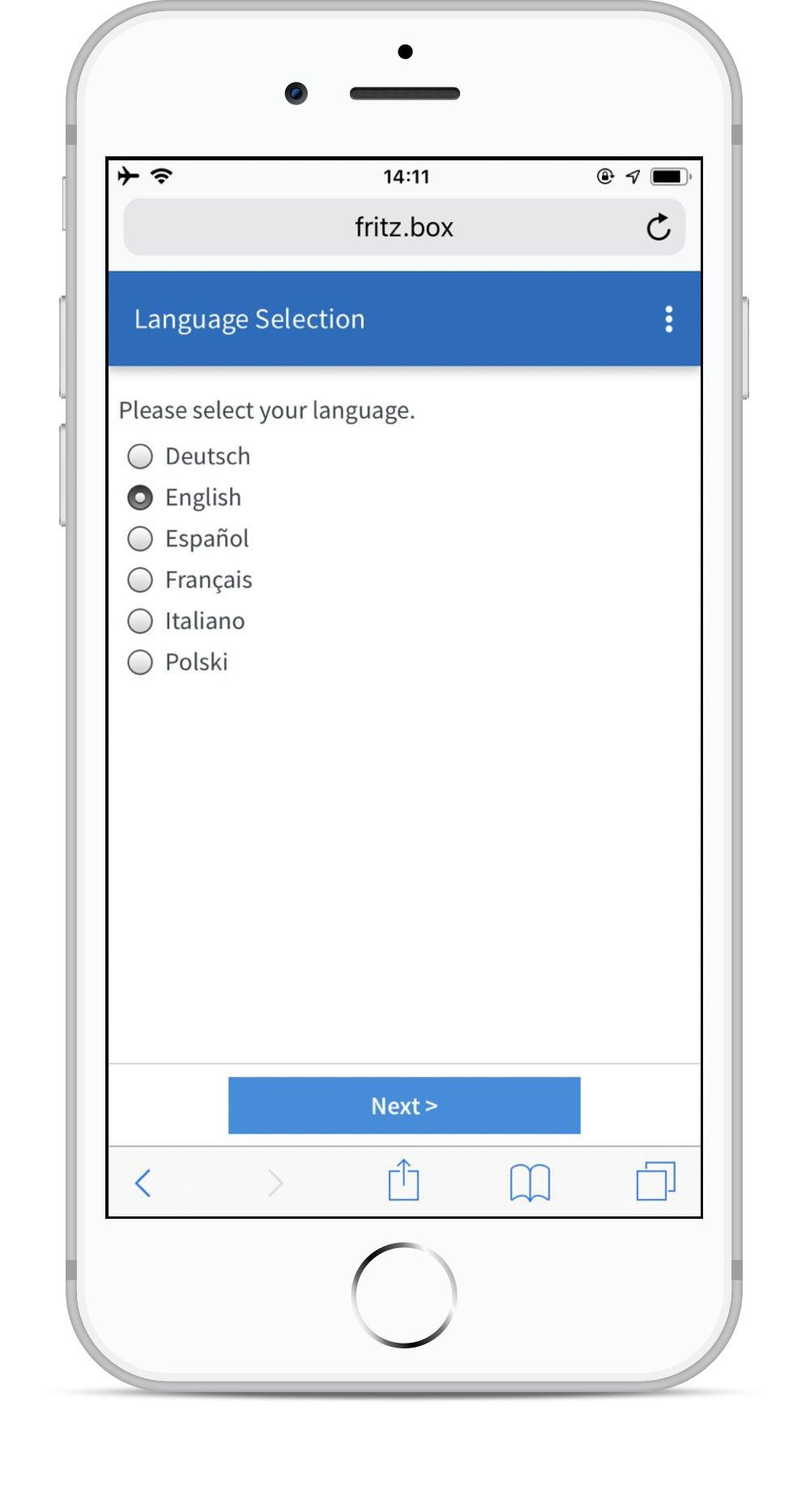

You will be redirected to the wizard for the first basic configuration. Select English or another language if preferred.

Click on Next to continue.

How do I configure my FRITZ!Box if I only have a phone or a tablet

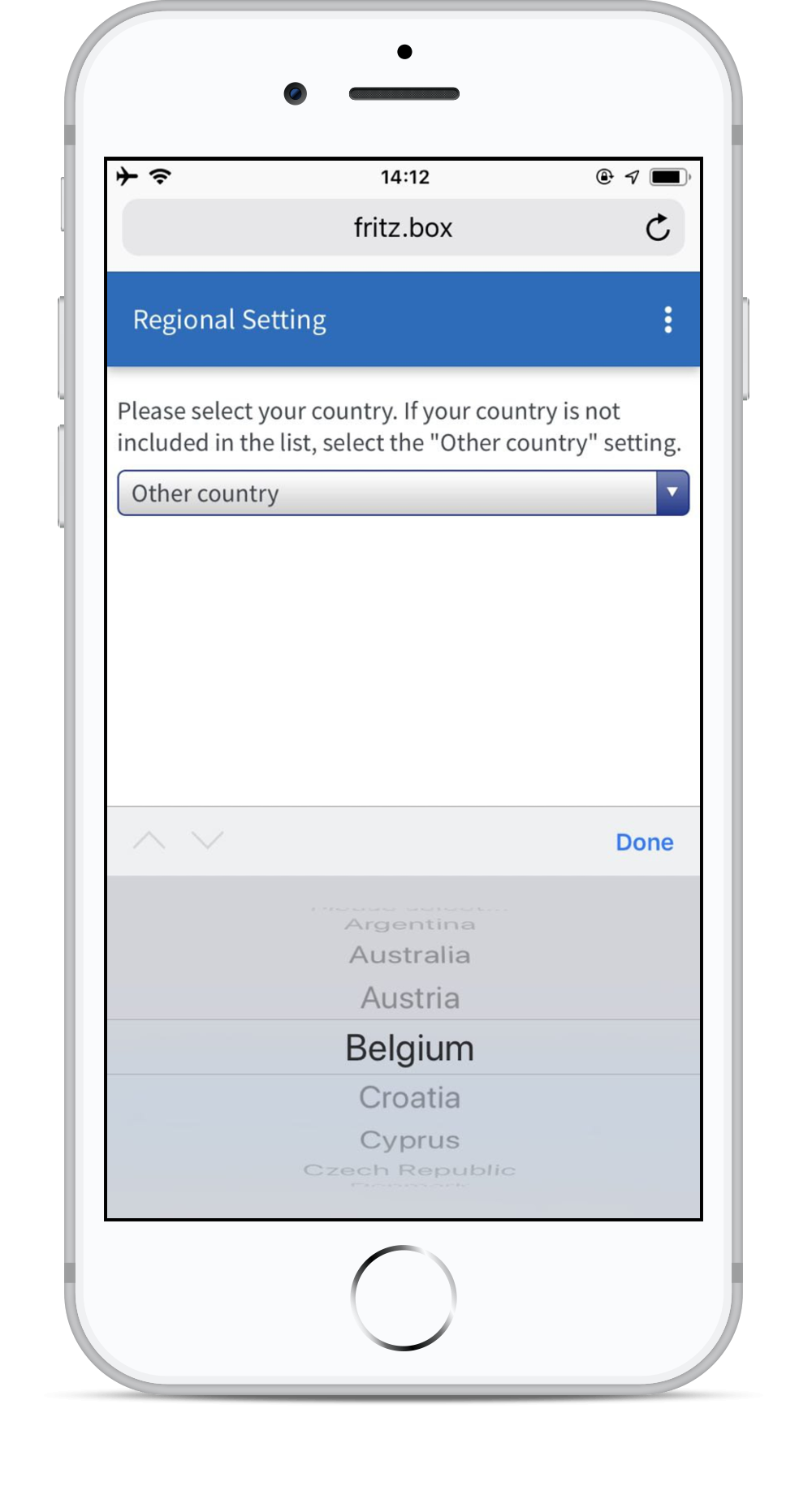

Step 3 — Regional setting



The language of the web interface has now changed to the language of your choice; in our case to English.

Next you see the screen to choose the regional setting.
Select Belgium in a drop-down menu and click on Apply.

How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 4 — Selecting the annex

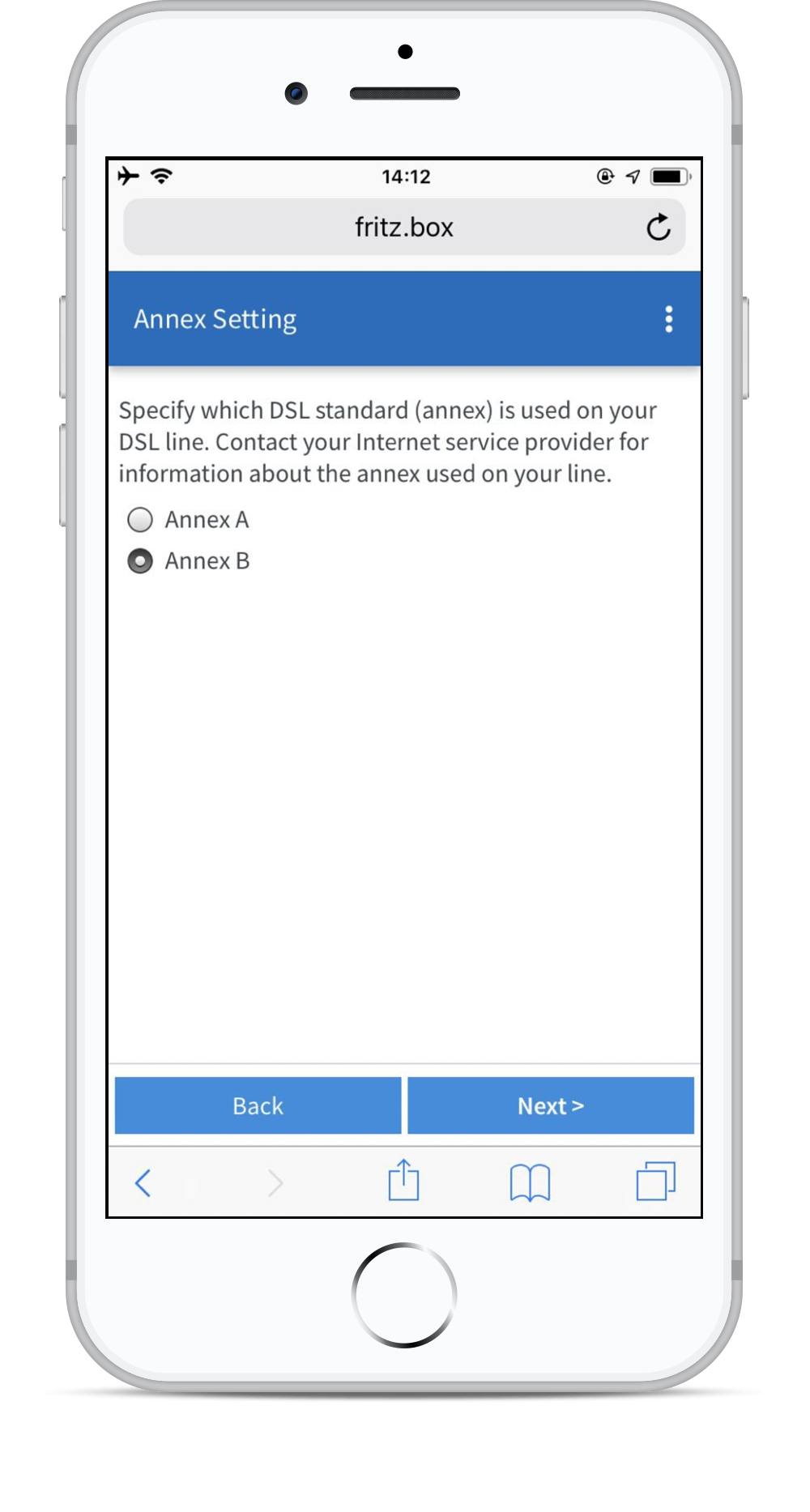

In order to make a successful connection to the edpnet network, your device needs to be put into the correct Annex setting.

The Annex-setting depends on the type of your connection.

Annex A: ADSL (PSTN or raw copper)
Annex B: VDSL



Choose the corresponding Annex setting and click on Next

How do I configure my FRITZ!Box if I only have a phone or a tablet

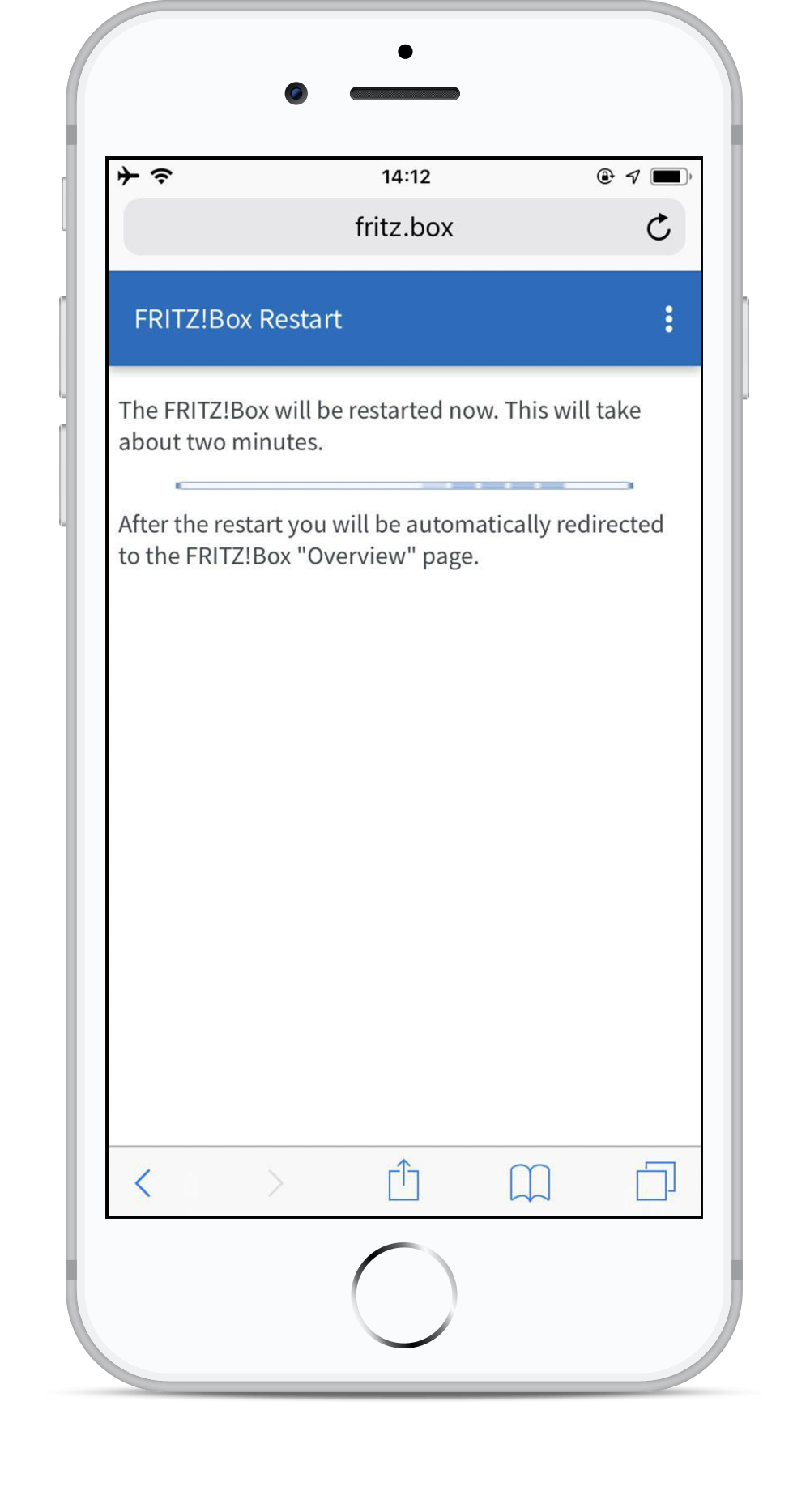

Step 5 — Reboot



The FRITZ!Box will now automatically reboot. It may take up to 2-3 minutes.



How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 6 — Assign a password

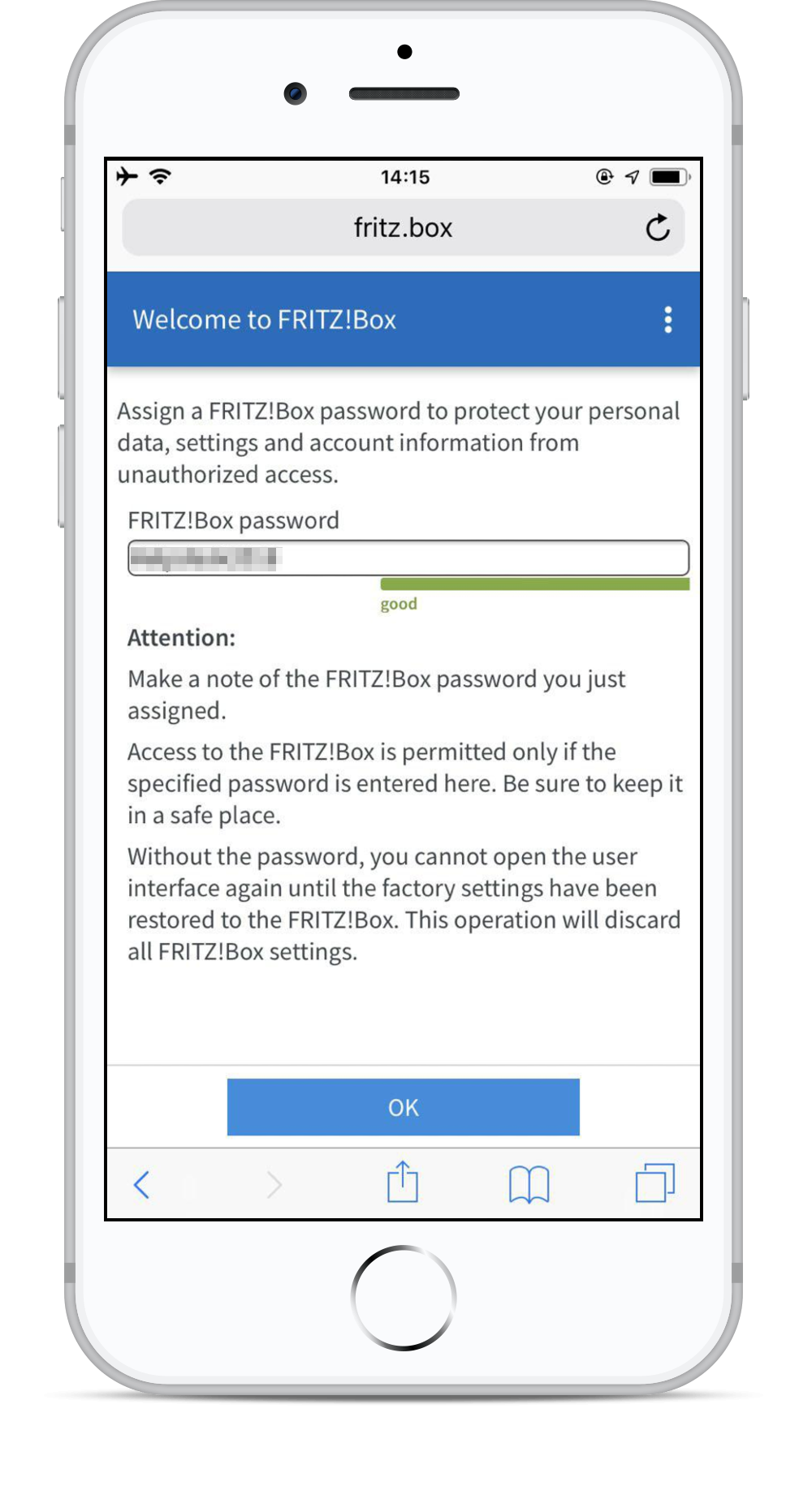

Once the reboot has been performed, you will be asked to assign a password. It will protect your settings and avoid unwanted access to your FRITZ!Box.

How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 7 — Welcome screen

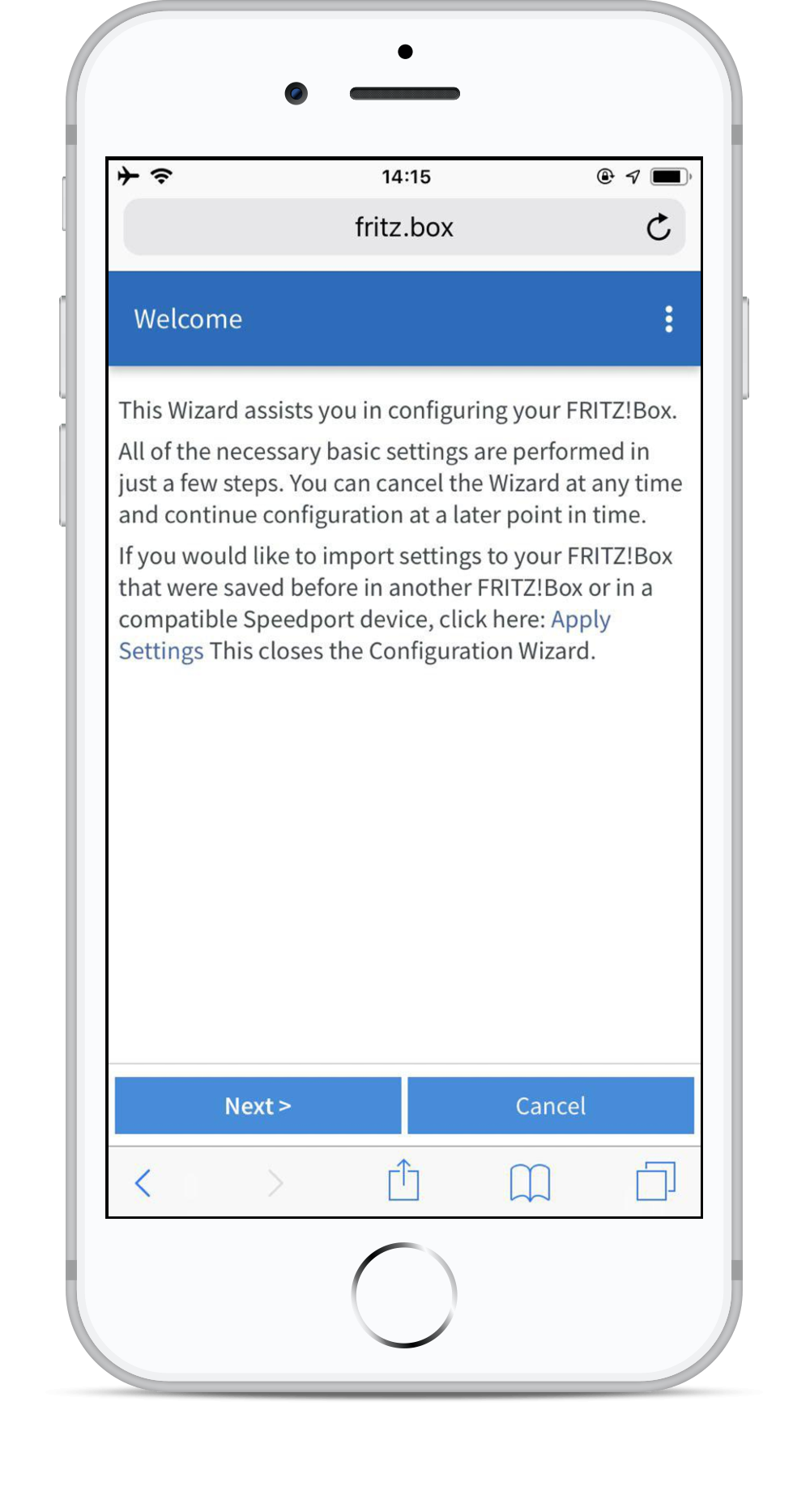

The next screen is the Welcome screen, where you can start the wizard to set up your internet connection. Click on Next.

How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 8 — Choosing your ISP

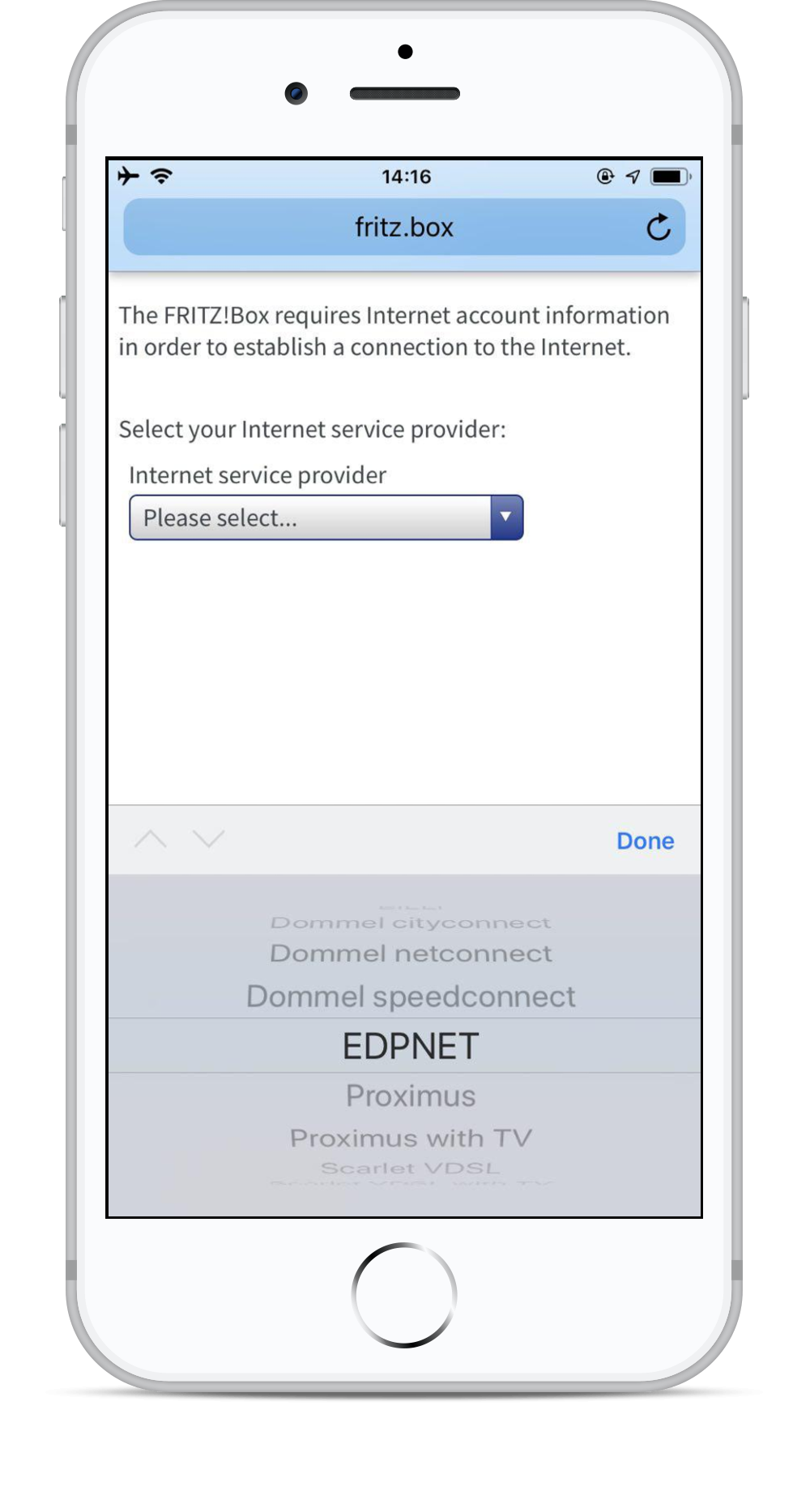

In the wizard you need to choose your Internet Service Provider. Select EDPNET in the drop-down list and click on Next.

How do I configure my FRITZ!Box if I only have a phone or a tablet

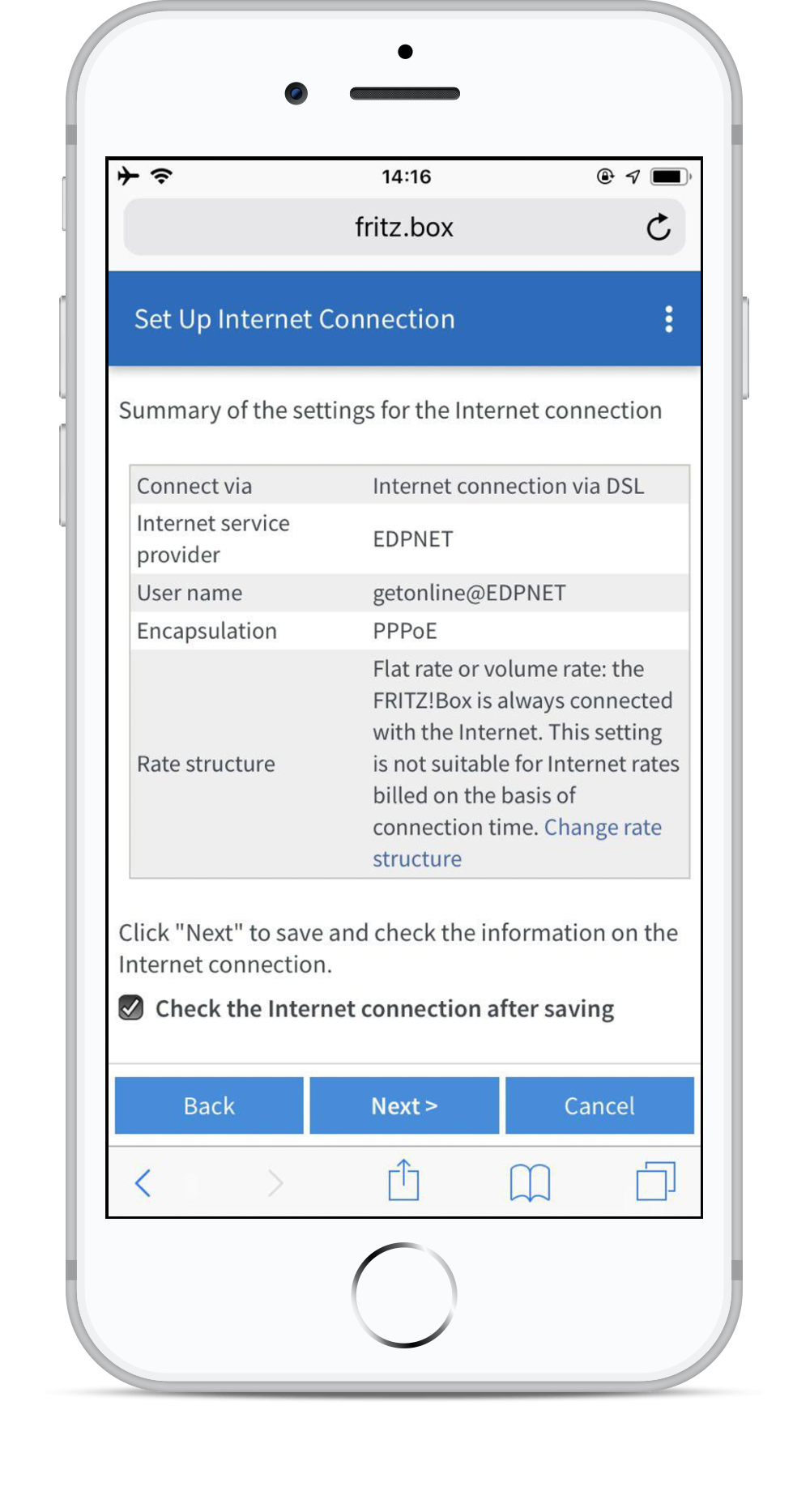

Step 9 — Confirm the settings



If you have chosen EDPNET as your ISP, all the settings will be filled in automatically for your connection. Click on Next.

How do I configure my FRITZ!Box if I only have a phone or a tablet

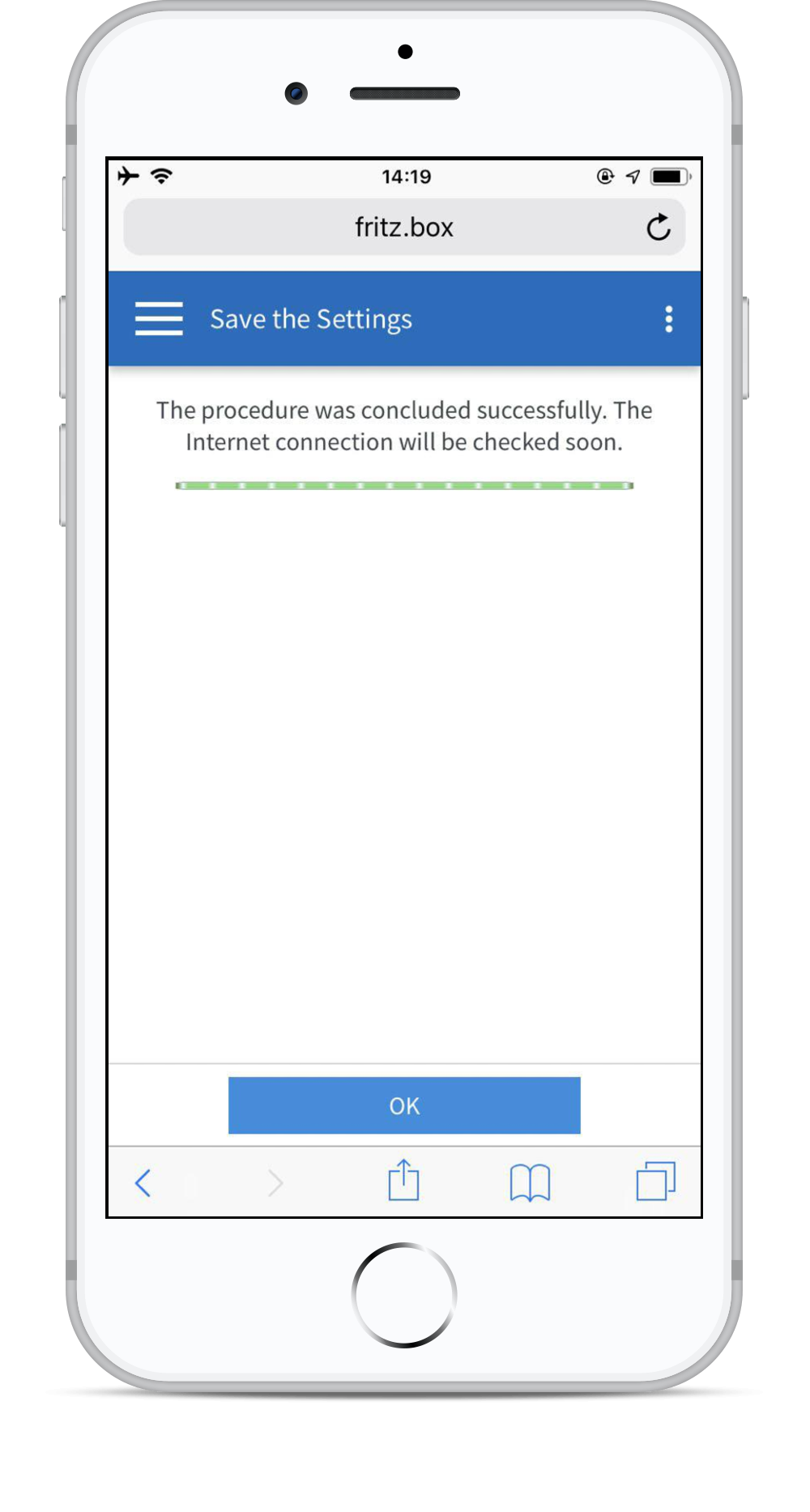

Step 10 — Checking connection



Your FRITZ!Box will now try to connect.

If there is a green line, it means the configuration has been finished successfully.

If there is a red line, check if your modem/router is still connected to the DSL line and if it gained synchronization (the Power LED should be on and not be blinking).
If you are not sure if your device is receiving a DSL signal, please, contact our customer service.

Your telephone numbers will be configured by our server. Though, If you want to set up more than 3 numbers, the automatic configuration is not possible. If that is your case, check out our guide on how to make a manual configuration.



How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 11 — Manual configuration



These steps can be followed if your internet connection is still not working after you followed the above-mentioned steps of automatic configuration. This part of the guide continues the steps of automatic configuration.

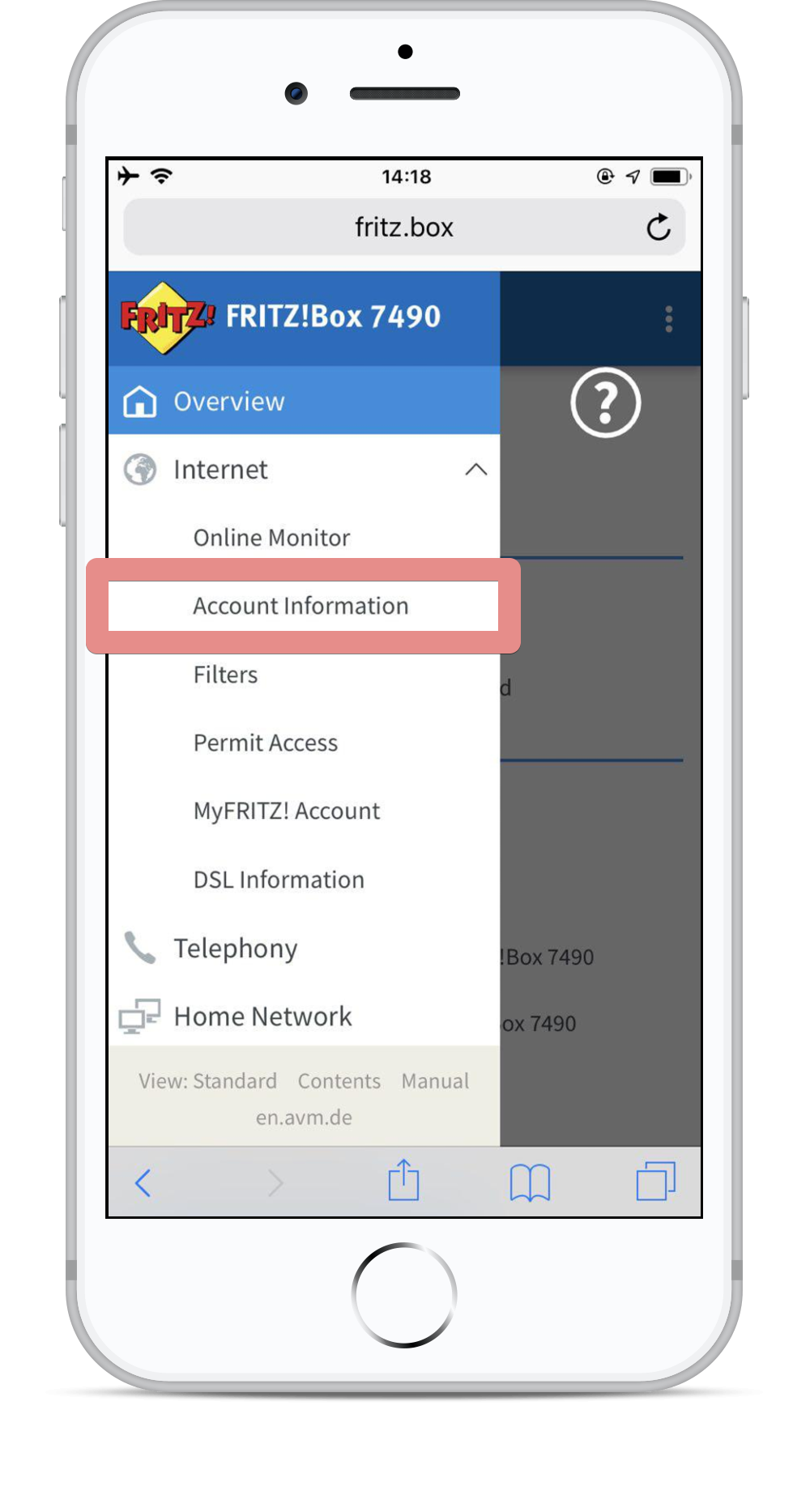

Click on Internet in the main menu and then select Account Information in a drop-down list.

How do I configure my FRITZ!Box if I only have a phone or a tablet

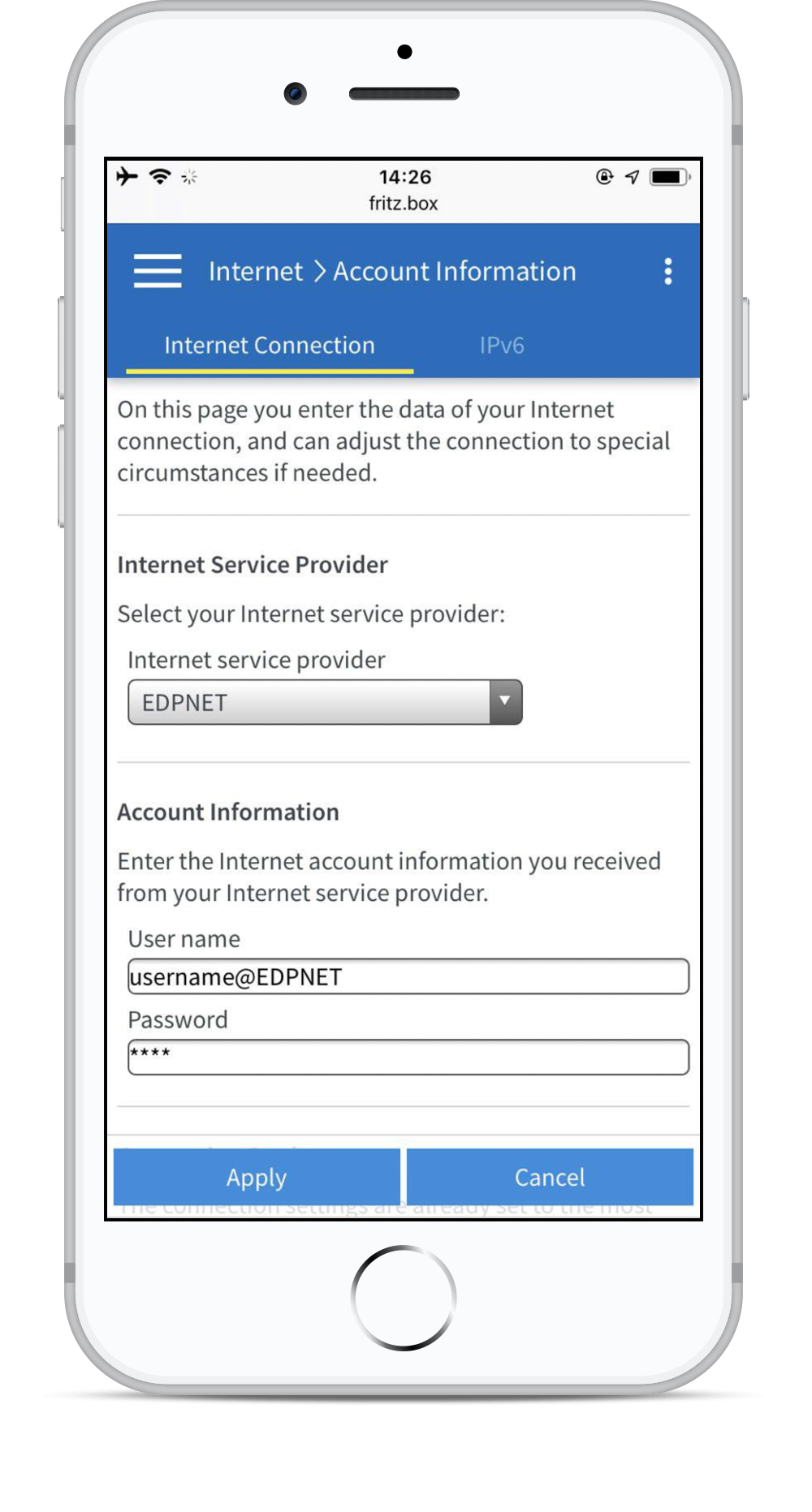

Choose EDPNET in the drop-down list of Internet Service Provider. The only thing you have to fill in at this step is your connection credentials (username and password) which you received from edpnet. Then click on Apply.

VoIP configuration

If automatic configuration of your telephone numbers failed or is not possible (for instance, if you need to set up more than 3 numbers), check out our guide on how to make a manual configuration.



How do I configure my FRITZ!Box if I only have a phone or a tablet



Step 1 — Connecting to the modem



First you need to enable Wi-Fi on your FRITZ!Box. Press the WLAN button and hold it down until the WLAN LED starts flashing:

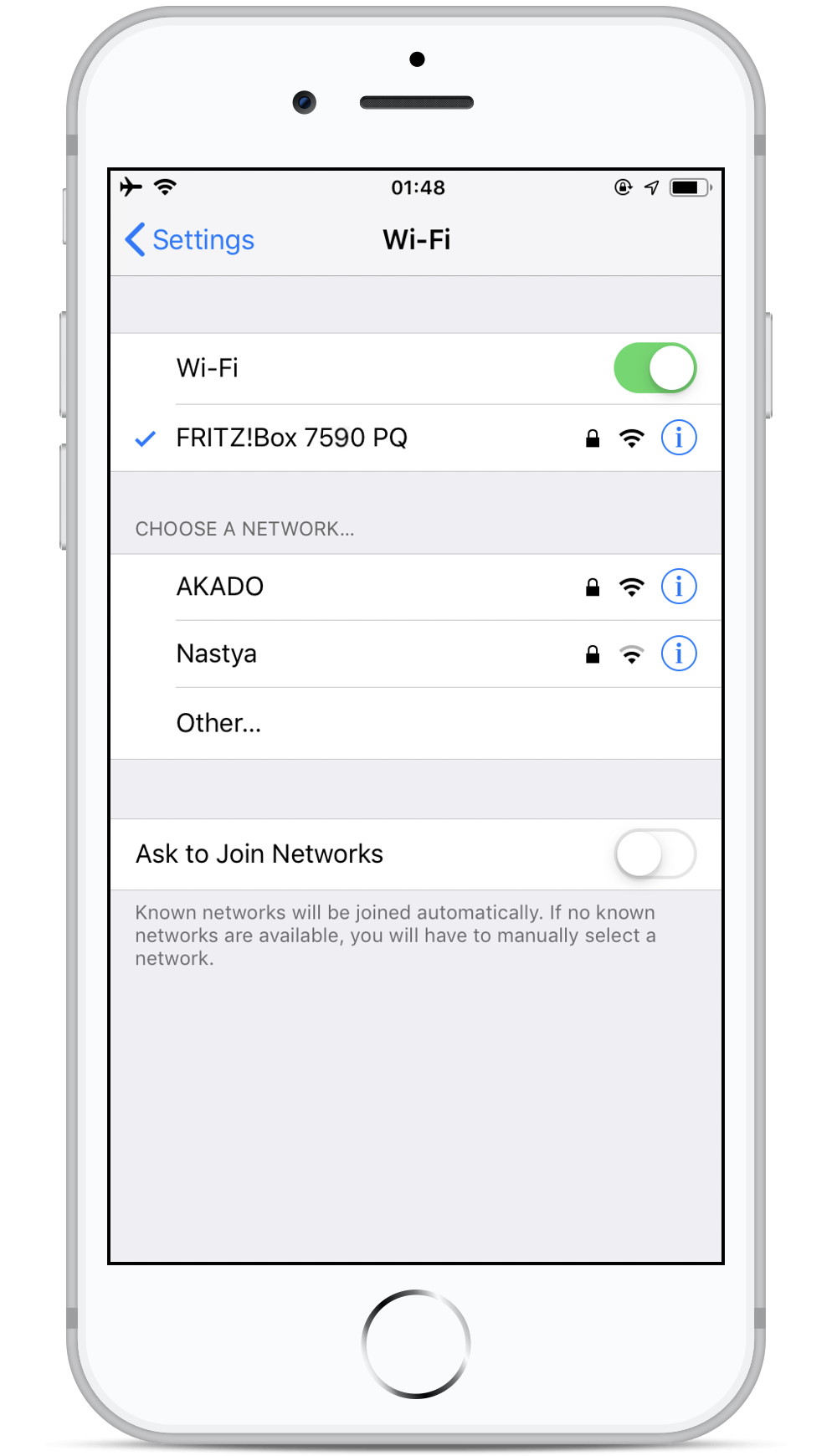

Connect your phone or tablet to the wireless network you just enabled. It’s called FRITZ!Box 7530 or FRITZ!Box 7590.

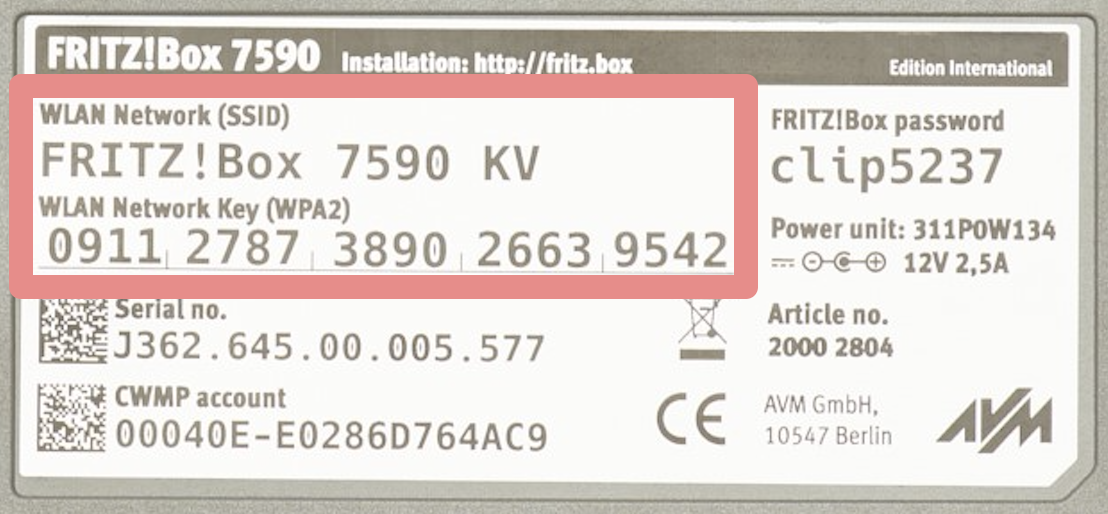

The password by default is printed on a label you may find on the back of the modem:

How do I configure my FRITZ!Box if I only have a phone or a tablet



How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 2 — Opening the web interface



Once you have connected to the modem wireless network, open your web browser (Internet Explorer, Firefox,…) and go to the web interface of your FRITZ!Box. By default, it should be reachable on http://fritz.box or http://192.168.178.1.

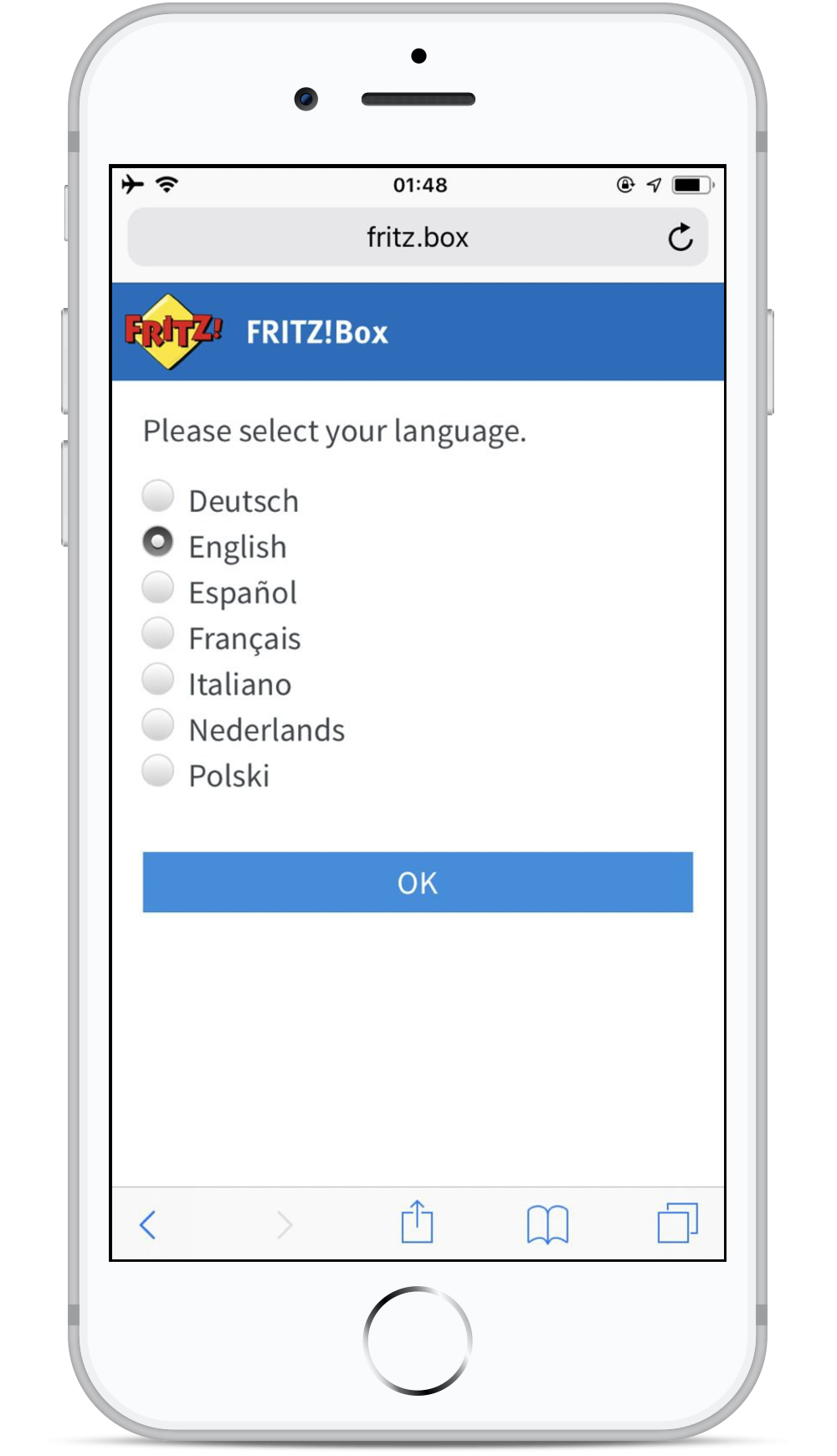

You will be redirected to the wizard for the first basic configuration. Select English or another language if preferred.

Click on Next to continue.

How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 3 — Logging in



The language of the web interface has now changed to the language of your choice: in our case to English.

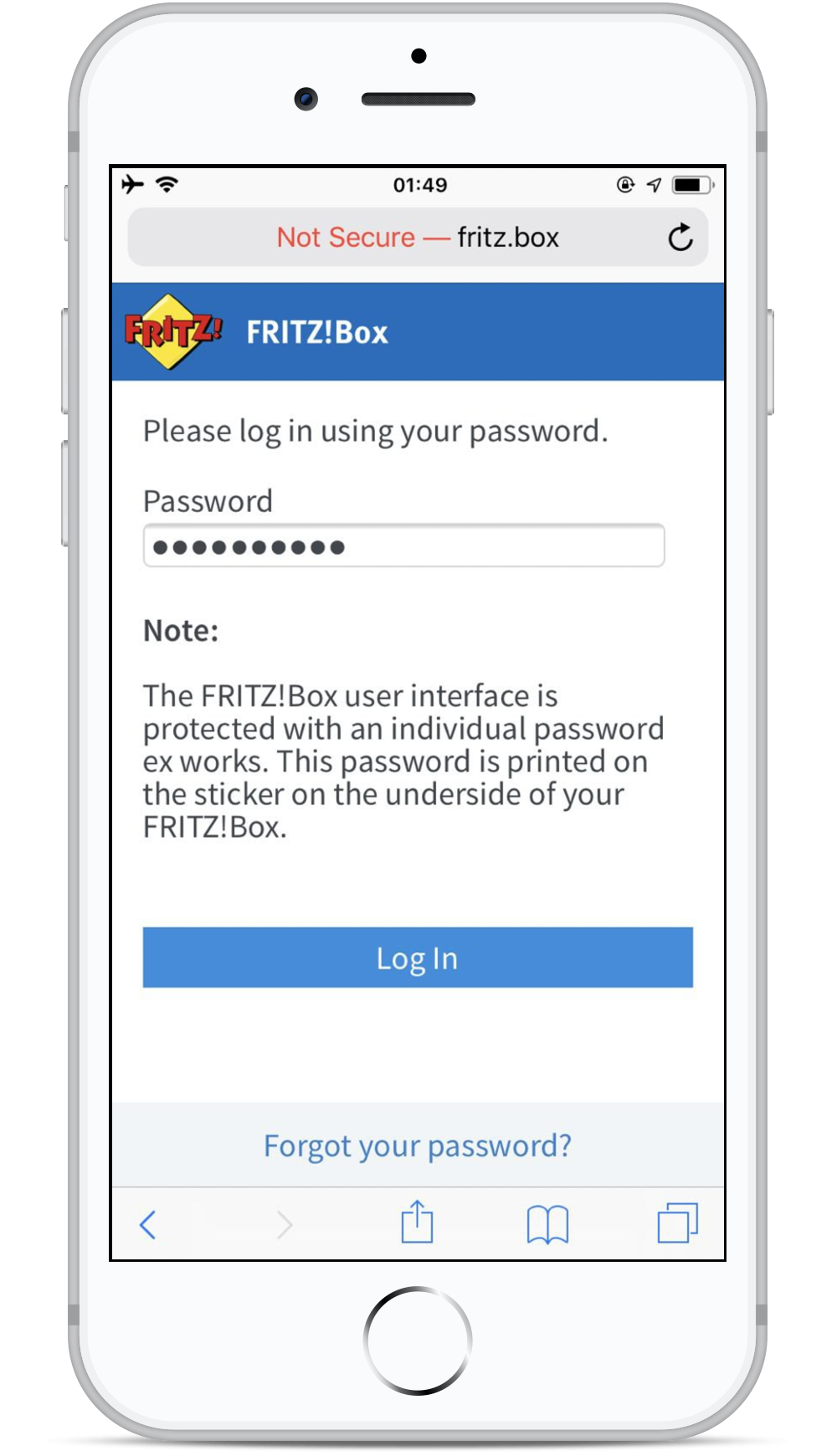

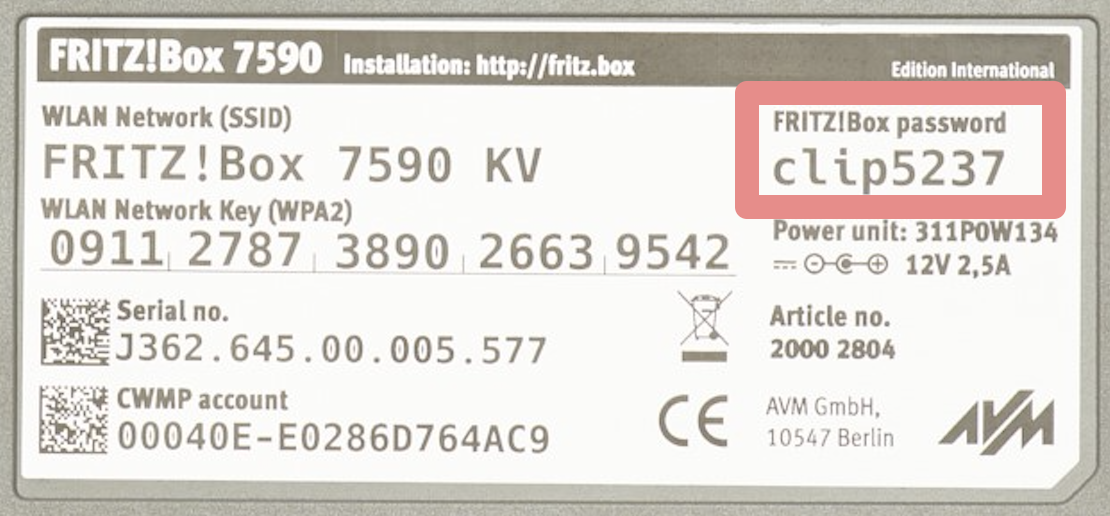

You will then need to enter the password of your FRITZ!Box. You can find it on the white sticker on the underside of the device:

How do I configure my FRITZ!Box if I only have a phone or a tablet

Click Log in to continue.

How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 4 — Regional setting

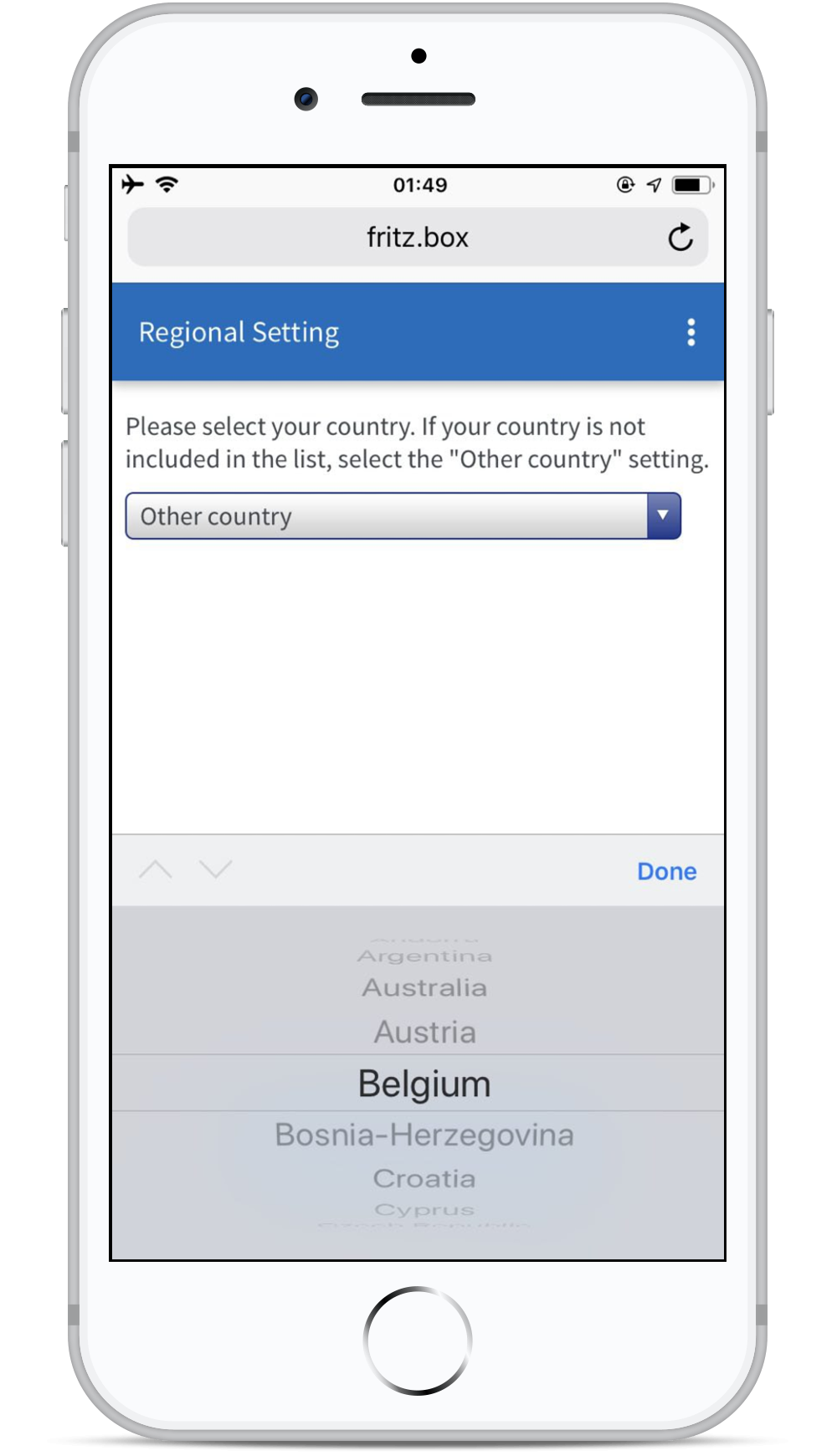

Next you will see the screen asking to choose the regional setting.

Select Belgium option in a drop-down list and click on Apply.

How do I configure my FRITZ!Box if I only have a phone or a tablet

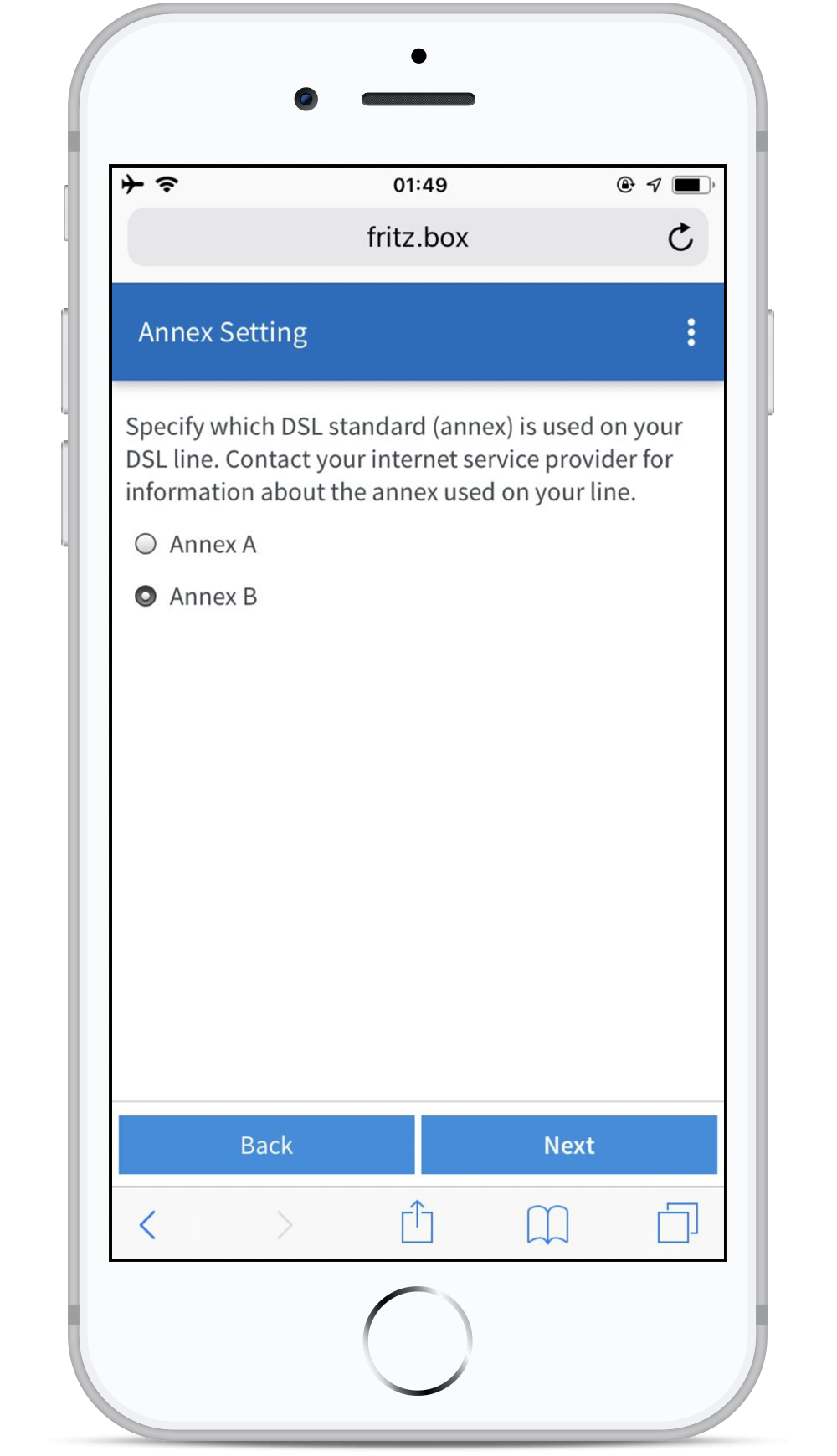

Step 5 — Selecting the annex



In order to make a successful connection to the edpnet network, your device needs to be put into the correct Annex setting, that depends on the type of your connection.

Annex A: ADSL (PSTN or raw copper)
Annex B: VDSL


Choose the corresponding Annex setting and click on Next

How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 6 — Reboot



The FRITZ!Box will now automatically reboot. It may take up to 2-3 minutes.



How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 7 — Welcome to the FRITZ!Box

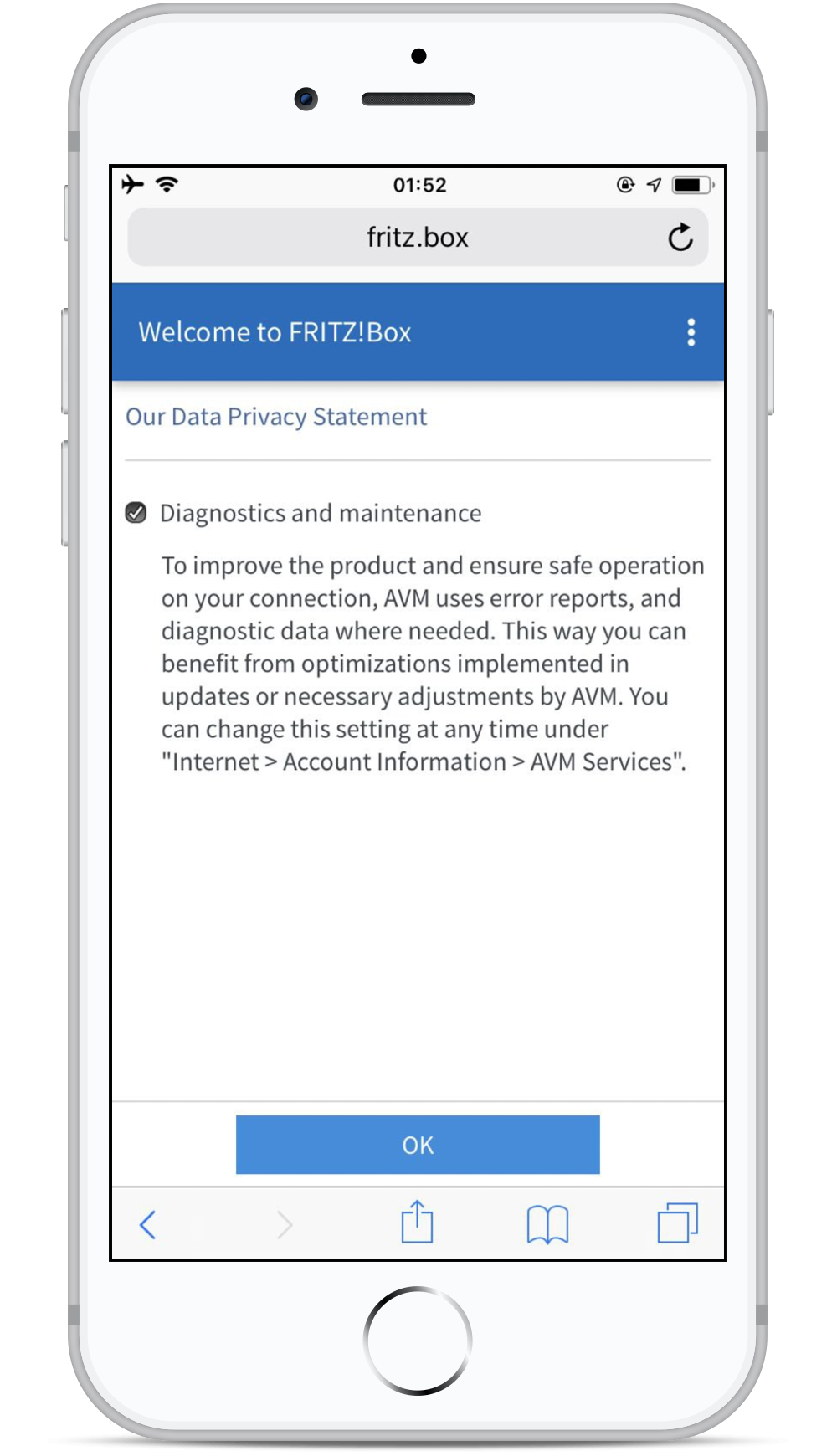

At this step, the FRITZ!Box will suggest to enable Diagnostics and maintenance option, which means that the device will be sending technical diagnostics data to AVM. Feel free to enable or disable the setting.

How do I configure my FRITZ!Box if I only have a phone or a tablet

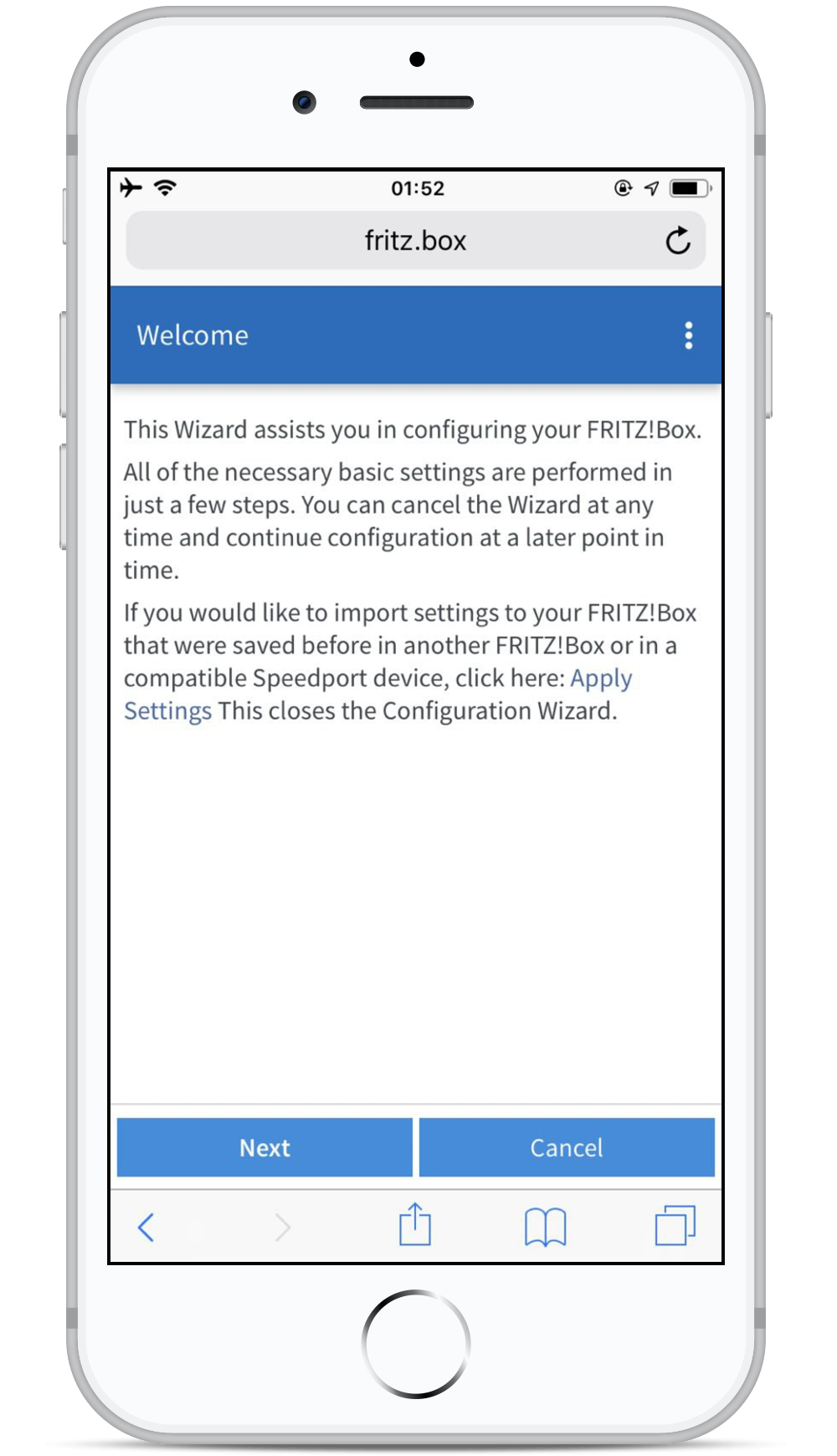

Step 8 — Welcome screen



The next screen is the Welcome screen, where you can start the wizard to set up your internet connection. Click on Next.

How do I configure my FRITZ!Box if I only have a phone or a tablet

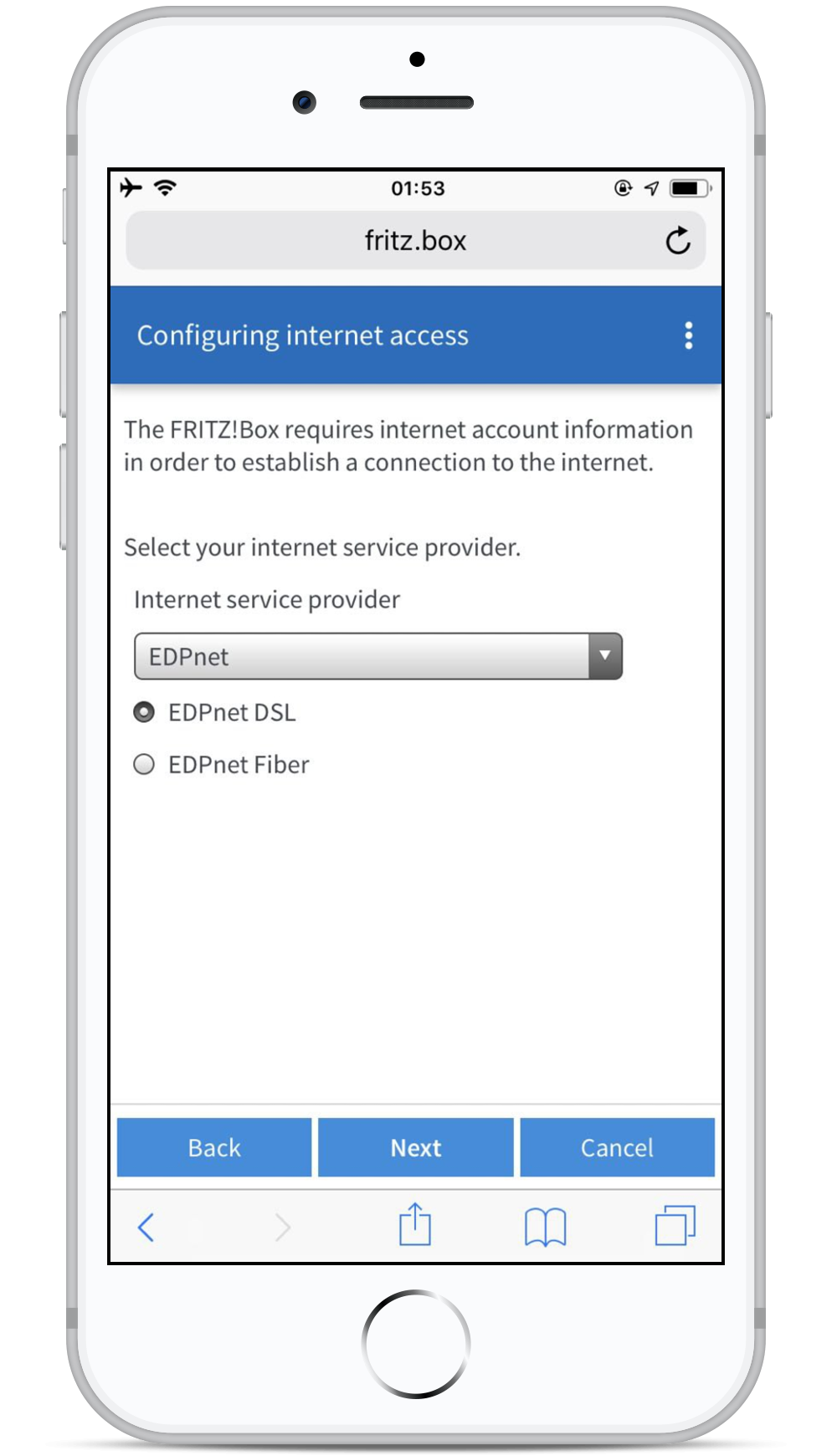

Step 9 — Choosing your ISP



In the wizard, you need to choose your Internet Service Provider. Choose EDPnet in a drop-down list and select EDPnet DSL option. Click on Next.

How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 10 — Confirm the settings

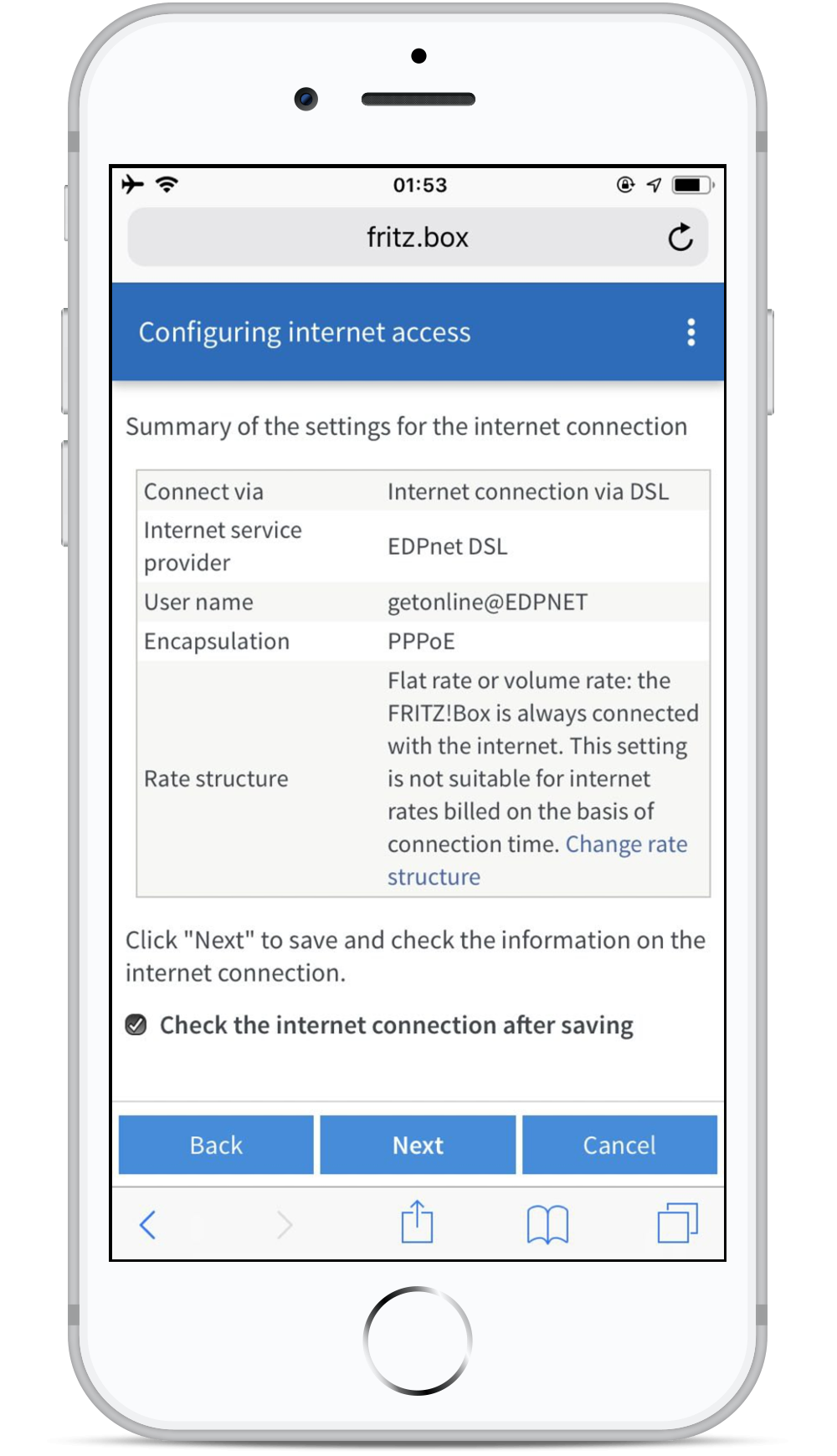

If you have chosen EDPnet as your ISP, all the settings will be filled in automatically for your connection. Click on Next.

How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 10 — Checking connection



Your FRITZ!Box will now try to connect.

If there is a green line, it means the configuration has been finished successfully.

If there is a red line, check if your modem/router is still connected to the DSL line and if it gained synchronization (the Power LED should be on and not be blinking).
If you are not sure if your device is receiving a DSL signal, please, contact our customer service.



How do I configure my FRITZ!Box if I only have a phone or a tablet

Step 11 — Manual configuration



These steps can be followed if your internet connection is still not working after you followed the above-mentioned steps of automatic configuration. This part of the guide continues the steps of automatic configuration.

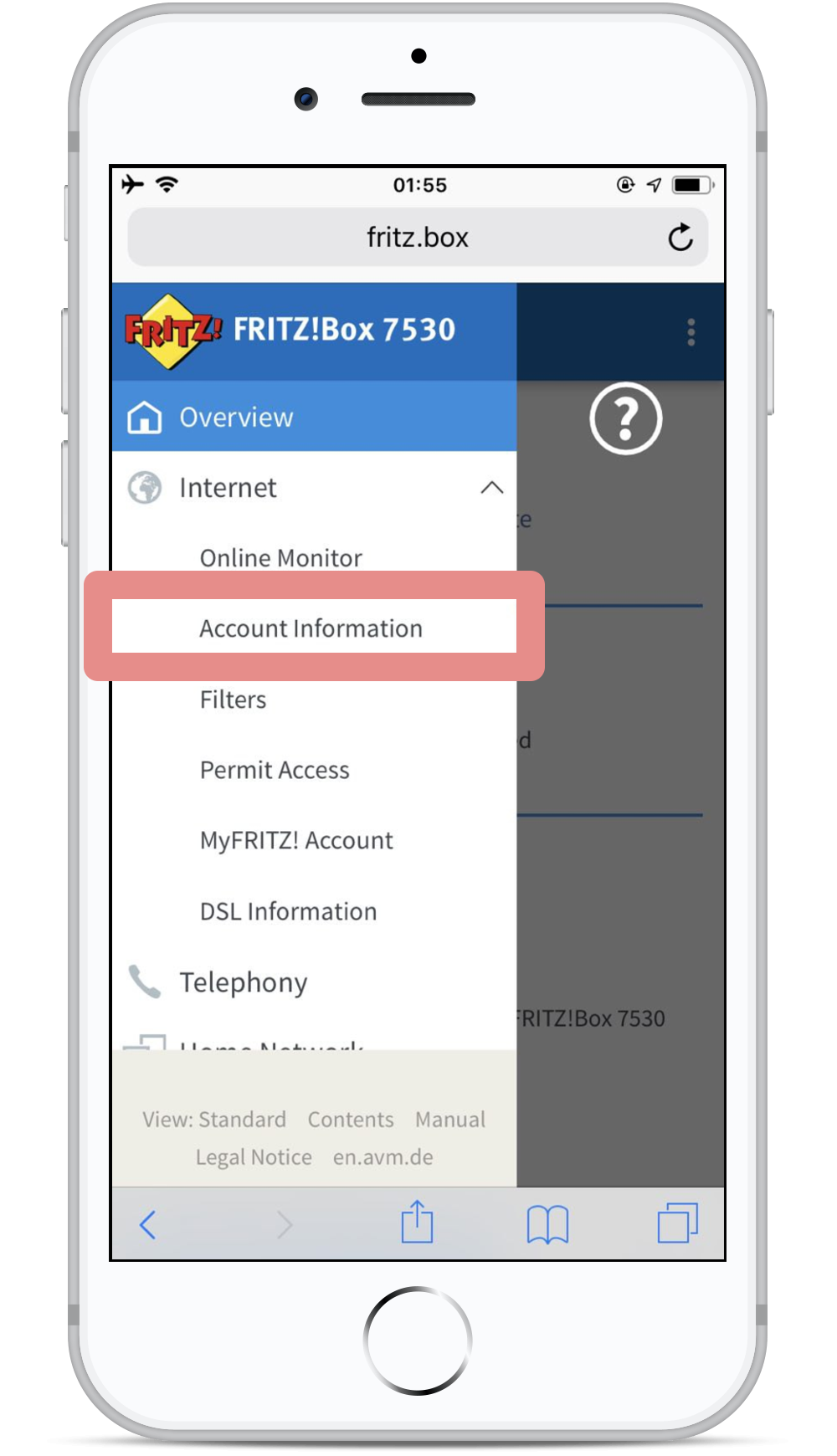

Click on Internet in the main menu and then select Account Information in a drop-down list.

How do I configure my FRITZ!Box if I only have a phone or a tablet

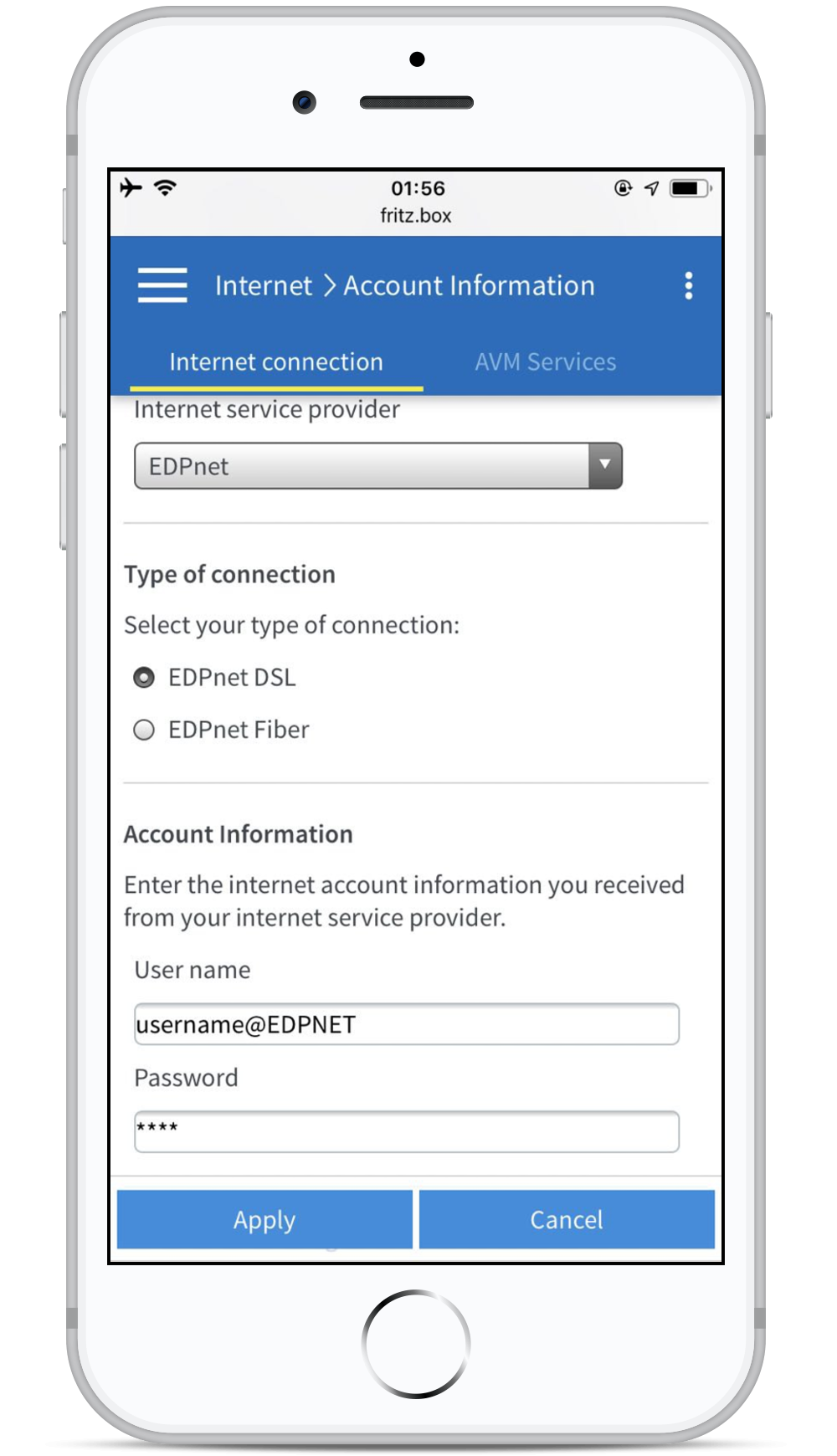

Choose EDPnet in a drop-down list under Internet Service Provider and select EDPnet DSL option.

The only thing you have to fill in at this step is your connection credentials (username and password) which you received from edpnet. Click on Apply.
